STF15NM65N دیتاشیت

STF15NM65N

مشخصات دیتاشیت

نام دیتاشیت STF15NM65N
حجم فایل 59.233 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

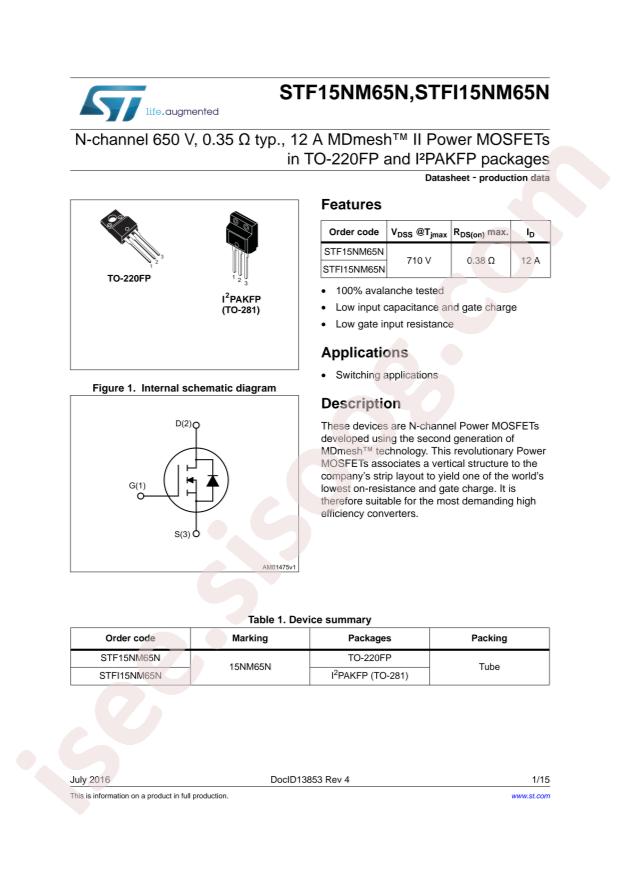

مشاهده دیتاشیت STF15NM65N

دانلود دیتاشیت

سایر مستندات

STF,FI,P15NM65N 15 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STF15NM65N
  • Power Dissipation (Pd): 30W
  • Drain Source Voltage (Vdss): 650V
  • Continuous Drain Current (Id): 12A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 380mΩ@10V,6A

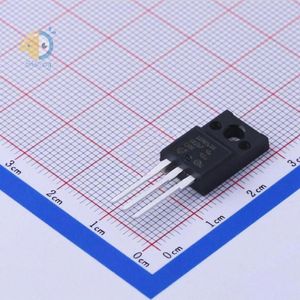

  • Package: TO-220F
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ II
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 380mOhm @ 6A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 33.3nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 983pF @ 50V
  • FET Feature: -
  • Power Dissipation (Max): 30W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: STF15
  • detail: N-Channel 650V 12A (Tc) 30W (Tc) Through Hole TO-220FP
