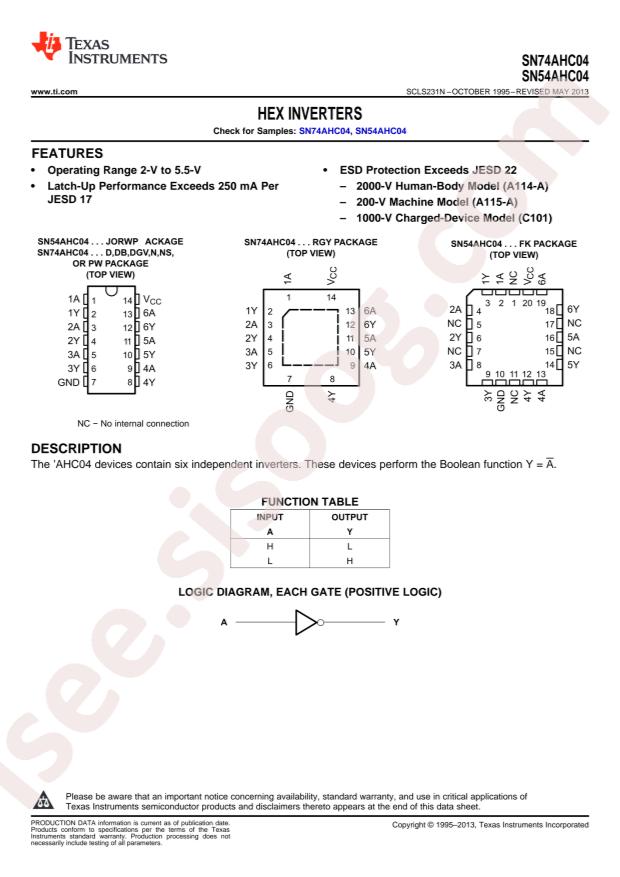

SN74AHC04DR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74AHC04DR
|
|
حجم فایل
|
64.177
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
26
|
مشخصات فنی
-
RoHS:
true
-
Series:
74AHC
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments SN74AHC04DR
-
Input Type:
-
-
Sink Current:
8mA
-
Source Current:
8mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
2uA
-
Low level range (VIL):
0.5V~1.65V
-
Max Propagation Delay:
7.5ns@5V,50pF
-
Operating Temperature:
-40°C~+125°C
-
High level range (VIH):
1.5V~3.85V
-
Supply Voltage(Single):
2V~5.5V
-
Package:
SOP-14
-
Manufacturer:
Texas Instruments
-
Part Status:
Active
-
Max Propagation Delay @ V, Max CL:
7.5ns @ 5V, 50pF
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Logic Level - Low:
0.5V ~ 1.65V
-
Current - Output High, Low:
8mA, 8mA
-
Base Part Number:
SN74AHC0
-
Current - Quiescent (Max):
2µA
-
Mounting Type:
Surface Mount
-
Voltage - Supply:
2V ~ 5.5V
-
Packaging:
Cut Tape (CT)
-
Logic Type:
Inverter
-
Supplier Device Package:
14-SOIC
-
Features:
-
-
Logic Level - High:
1.5V ~ 3.85V
-
detail:
Inverter IC 6 Channel 14-SOIC
