دیتاشیت SN74LV14APWR
مشخصات دیتاشیت
| نام دیتاشیت | SN54LV14A, SN74LV14A |
|---|---|
| حجم فایل | 1295.527 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت SN54LV14A, SN74LV14A |

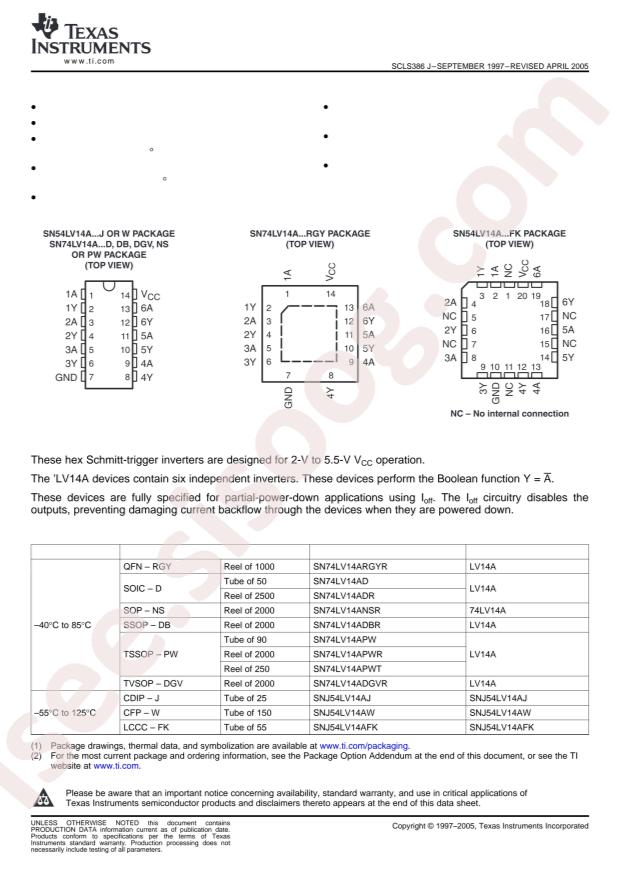

SN54LV14A, SN74LV14A Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LV
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN74LV14APWR
- Input Type: Schmitt Trigger
- Sink Current: 12mA
- Source Current: 12mA
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 20uA
- Low level range (VIL): 0.75V~1.5V
- Max Propagation Delay: 10.6ns@5V,50pF
- Operating Temperature: -40°C~+125°C
- High level range (VIH): 1.75V~3.5V
- Supply Voltage(Single): 2V~5.5V
- Package: TSSOP-14
- Manufacturer: Texas Instruments
- Part Status: Active
- Max Propagation Delay @ V, Max CL: 10.6ns @ 5V, 50pF
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Logic Level - Low: 0.75V ~ 1.5V
- Current - Output High, Low: 12mA, 12mA
- Base Part Number: SN74LV14
- Current - Quiescent (Max): 20µA
- Mounting Type: Surface Mount
- Voltage - Supply: 2V ~ 5.5V
- Packaging: Cut Tape (CT)
- Logic Type: Inverter
- Supplier Device Package: 14-TSSOP
- Features: Schmitt Trigger
- Logic Level - High: 1.75V ~ 3.5V
- detail: Inverter IC 6 Channel Schmitt Trigger 14-TSSOP
