دیتاشیت SN74LV08APWR
مشخصات دیتاشیت
| نام دیتاشیت | SN54LV08A, SN74LV08A |
|---|---|
| حجم فایل | 1227.162 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت SN54LV08A, SN74LV08A |

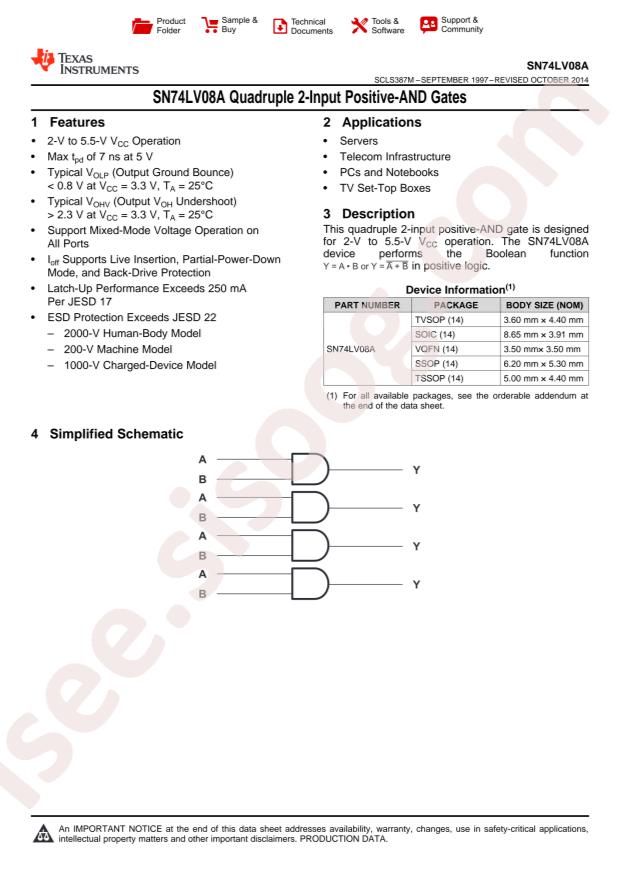

SN54LV08A, SN74LV08A Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LV
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LV08APWR
- Sink Current: 12mA
- Source Current: 12mA
- Supply Voltage: 2V~5.5V
- Logic Gate Type: And
- Number of Channels: 4
- Low Level Range (VIL): 0.5V
- Operating Temperature: -40°C~+125°C
- High Level Range (VIH): 1.5V
- Propagation Delay Time: 7.9ns@5V,50pF
- Quiescent Current (Max): 20uA
- Package: TSSOP-14
- Manufacturer: Texas Instruments
- Part Status: Active
- Max Propagation Delay @ V, Max CL: 7.9ns @ 5V, 50pF
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Logic Level - Low: 0.5V
- Current - Output High, Low: 12mA, 12mA
- Base Part Number: SN74LV08
- Current - Quiescent (Max): 20µA
- Mounting Type: Surface Mount
- Number of Inputs: 2
- Voltage - Supply: 2V ~ 5.5V
- Number of Circuits: 4
- Packaging: Cut Tape (CT)
- Logic Type: AND Gate
- Supplier Device Package: 14-TSSOP
- Features: -
- Logic Level - High: 1.5V
- detail: AND Gate IC 4 Channel 14-TSSOP
