دیتاشیت SN74LV04APWR

SN74LV04APWR

مشخصات دیتاشیت

نام دیتاشیت SN74LV04APWR
حجم فایل 104.816 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

SN74LV04APWR

دانلود دیتاشیت

سایر مستندات

SN54LV04A, SN74LV04A 27 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LV
  • Category: Logic ICs/Inverters

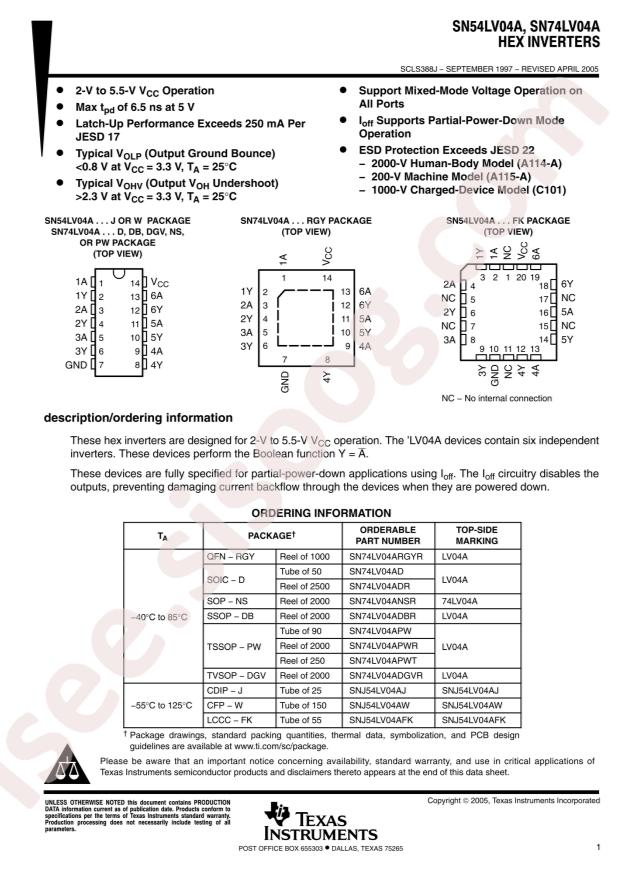

  • Datasheet: Texas Instruments SN74LV04APWR
  • Sink Current: 12mA
  • Source Current: 12mA
  • Number of channels: 6
  • Supply Current (Max): 20uA
  • Low level range (VIL): 0.5V
  • Max Propagation Delay: 7.5ns@5V,50pF
  • Operating Temperature: 40°C~+85°C
  • High level range (VIH): 1.5V
  • Supply Voltage(Single): 2V~5.5V
  • Package: TSSOP-14
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Logic Level - Low: 0.5V
  • Current - Output High, Low: 12mA, 12mA
  • Base Part Number: SN74LV04
  • Current - Quiescent (Max): 20µA
  • Mounting Type: Surface Mount
  • Number of Inputs: 6
  • Voltage - Supply: 2V ~ 5.5V
  • Number of Circuits: 6
  • Packaging: Cut Tape (CT)
  • Logic Type: Inverter
  • Supplier Device Package: 14-TSSOP
  • Features: -
  • Logic Level - High: 1.5V
  • detail: Inverter IC 6 Channel 14-TSSOP
