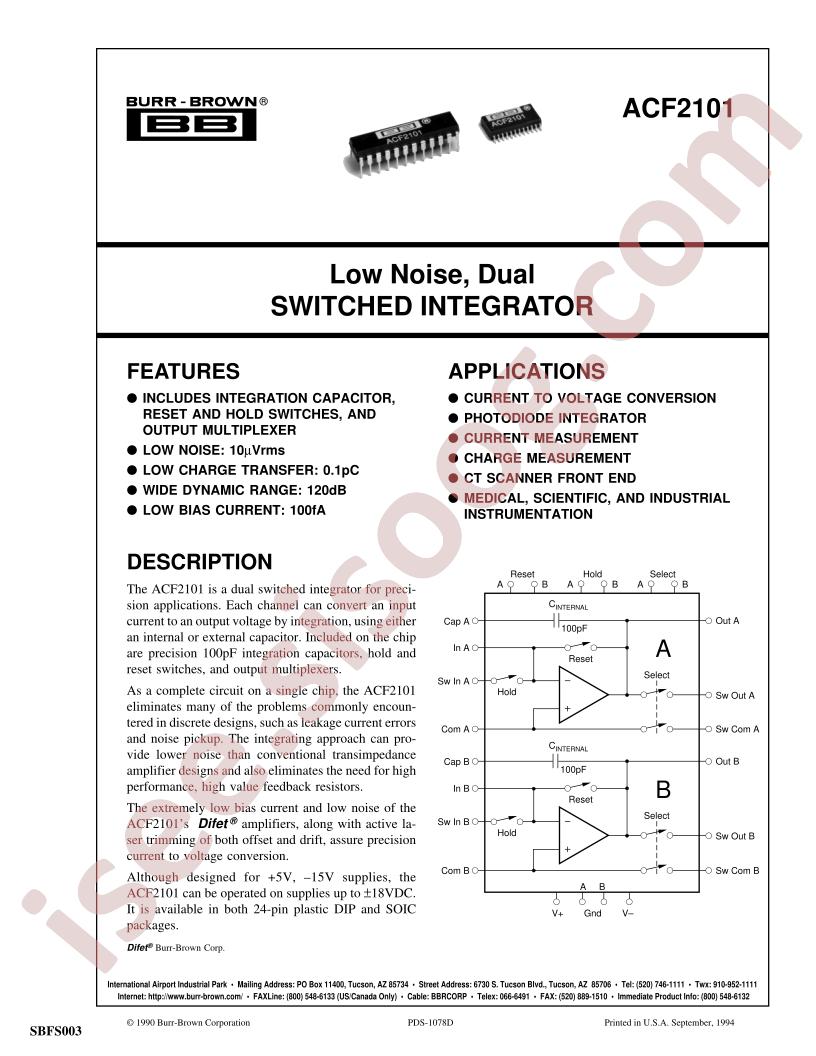

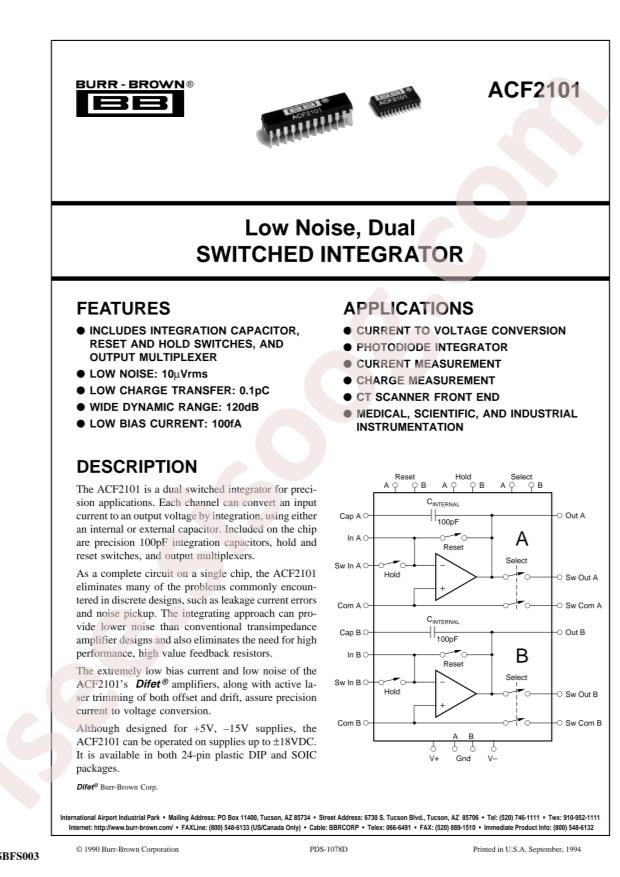

ACF2101BU Datasheet
Datasheet specifications
|
Datasheet's name
|
ACF2101BU
|
|
File size
|
92.104
KB
|
|
File type
|
pdf
|
|
Number of pages
|
19
|
Technical specifications
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Operational Amplifier
-
Datasheet:
Texas Instruments ACF2101BU
-
-3db Bandwidth:
-
-
Output Current:
25mA
-
Operating Temperature:
-40°C~+85°C
-
Current - Input Bias(Ib):
0.1pA
-
Gain Bandwidth Product(GBP):
2MHz
-
Package:
SOP-24-300mil
-
Manufacturer:
Texas Instruments
-
Voltage - Input Offset:
500µV
-
Current - Supply:
12mA
-
Mounting Type:
Surface Mount
-
Package / Case:
24-SOIC (0.295", 7.50mm Width)
-
Amplifier Type:
Switched Integrator
-
Series:
Difet®
-
Base Part Number:
ACF2101
-
Part Status:
Active
-
Gain Bandwidth Product:
2MHz
-
Current - Input Bias:
0.1pA
-
Voltage - Supply, Single/Dual (±):
4.5V ~ 18V, -10V ~ -18V
-
Number of Circuits:
2
-
Packaging:
Tube
-
Output Type:
-
-
Supplier Device Package:
24-SOIC
-
Slew Rate:
3V/µs
-
Current - Output / Channel:
25mA
-
detail:
Switched Integrator Amplifier 2 Circuit 24-SOIC
