TLV74133PDBVR دیتاشیت

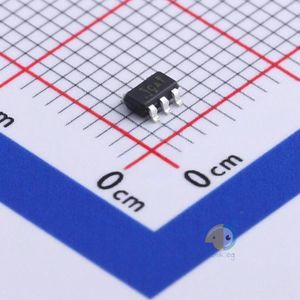

TLV74133PDBVR

مشخصات دیتاشیت

نام دیتاشیت TLV74133PDBVR
حجم فایل 90.316 کیلوبایت
نوع فایل pdf
تعداد صفحات 33

دانلود دیتاشیت TLV74133PDBVR

دانلود دیتاشیت

سایر مستندات

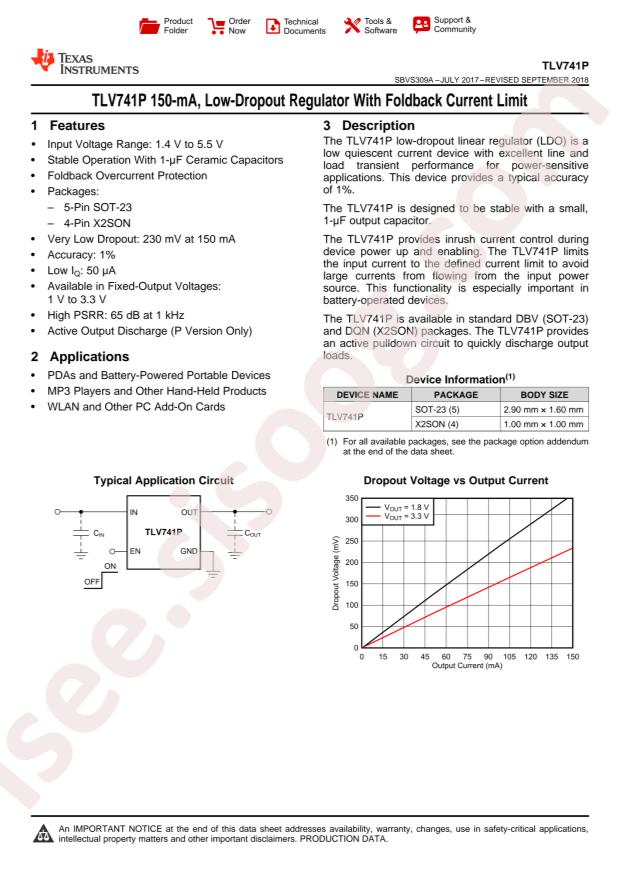

TLV741P Datasheet 33 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TLV74133PDBVR
  • Output Current: 150mA
  • Output Voltage: 3.3V
  • Dropout Voltage: 0.54V@(150mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Quiescent Current (Ground Current): 50uA
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Current - Supply (Max): 75µA
  • Control Features: Enable
  • Packaging: Cut Tape (CT)
  • Voltage - Output (Max): -
  • Voltage - Output (Min/Fixed): 3.3V
  • Protection Features: Current Limit, Thermal Shutdown, UVLO
  • Output Type: Fixed
  • Supplier Device Package: SOT-23-5
  • Current - Quiescent (Iq): 50µA
  • Part Status: Active
  • Current - Output: 150mA
  • Series: -
  • Number of Regulators: 1
  • PSRR: 70dB ~ 55dB (100Hz ~ 1MHz)
  • Base Part Number: TLV741
  • Voltage Dropout (Max): 0.54V @ 150mA
  • Package / Case: SC-74A, SOT-753
  • Output Configuration: Positive
  • Voltage - Input (Max): 5.5V
  • detail: Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
