دیتاشیت TLV74333PDBVR

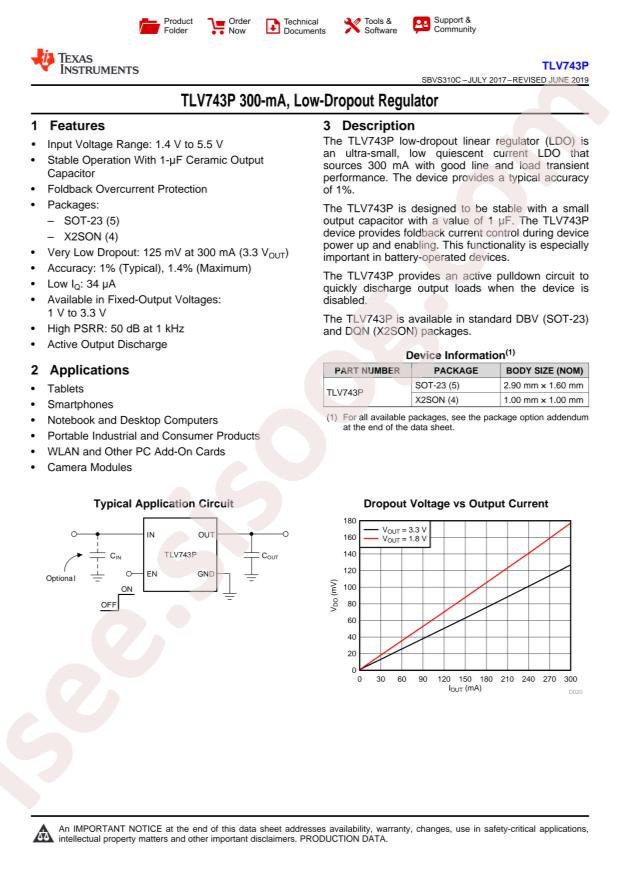

TLV743xx Datasheet

مشخصات دیتاشیت

نام دیتاشیت TLV743xx Datasheet
حجم فایل 1725.78 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

دانلود دیتاشیت TLV743xx Datasheet

TLV743xx Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TLV74333PDBVR
  • Output Type: Fixed
  • Output Current: 300mA
  • Output Voltage: 3.3V
  • Dropout Voltage: 270mV@(300mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Quiescent Current (Ground Current): 60uA
  • Power Supply Rejection Ratio (PSRR): 68dB@(100Hz),28dB@(100kHz)
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Current - Output: 300mA
  • Series: -
  • Package / Case: SC-74A, SOT-753
  • Voltage - Output (Min/Fixed): 3.3V
  • Control Features: Enable
  • Number of Regulators: 1
  • Mounting Type: Surface Mount
  • Voltage - Output (Max): -
  • Base Part Number: TLV743
  • Protection Features: Current Limit, Thermal Shutdown, UVLO
  • PSRR: 68dB ~ 28dB (100Hz ~ 100kHz)
  • Voltage Dropout (Max): 0.27V @ 300mA
  • Packaging: Cut Tape (CT)
  • Output Configuration: Positive
  • Supplier Device Package: SOT-23-5
  • Voltage - Input (Max): 5.5V
  • Current - Quiescent (Iq): 60µA
  • detail: Linear Voltage Regulator IC 1 Output 300mA SOT-23-5
