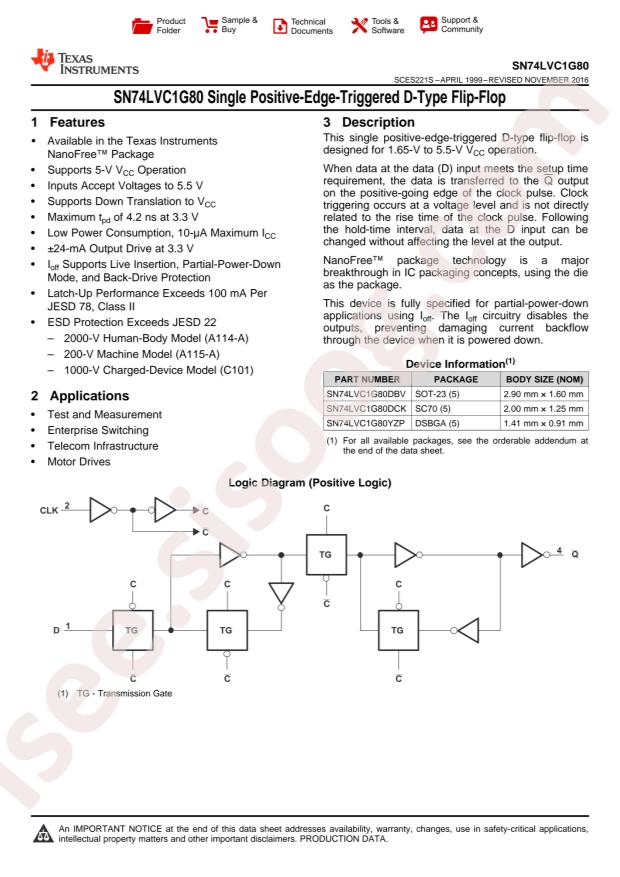

SN74LVC1G80DCKR Datasheet
Datasheet specifications
| Datasheet's name | SN74LVC1G80DCKR |
|---|---|
| File size | 89.906 KB |
| File type | |
| Number of pages | 28 |
Download Datasheet SN74LVC1G80DCKR |
Download Datasheet |
|---|
Other documentations
SN74LVC1G80 28 pages
Technical specifications
- RoHS: true
- Type: D-Type
- Series: 74LVC
- Category: Logic ICs/Flip Flops
- Function: Standard
- Datasheet: Texas Instruments SN74LVC1G80DCKR
- Output Type: Inverted
- Sink Current: 32mA
- Trigger Type: 上升沿
- Source Current: 32mA
- Supply Voltage: 1.65V~5.5V
- Clock Frequency: 160MHz
- Input Capacitance: 3.5pF
- Number of Elements: 1
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Iq): 10uA
- Maximum Propagation Delay: 4.5ns@5V,50pF
- Number of Bits per Element: 1
- Package: SC-70-5
- Manufacturer: Texas Instruments
- Voltage - Supply: 1.65V ~ 5.5V
- Part Status: Active
- Base Part Number: SN74LVC1G
- Current - Quiescent (Iq): 10µA
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Max Propagation Delay @ V, Max CL: 4.5ns @ 5V, 50pF
- Mounting Type: Surface Mount
- Current - Output High, Low: 32mA, 32mA
- Packaging: Cut Tape (CT)
- Supplier Device Package: SC-70-5
- detail: Flip Flop 1 Element D-Type 1 Bit Positive Edge 5-TSSOP, SC-70-5, SOT-353
