- دیتاشیت SN74LVC1G38DCKR

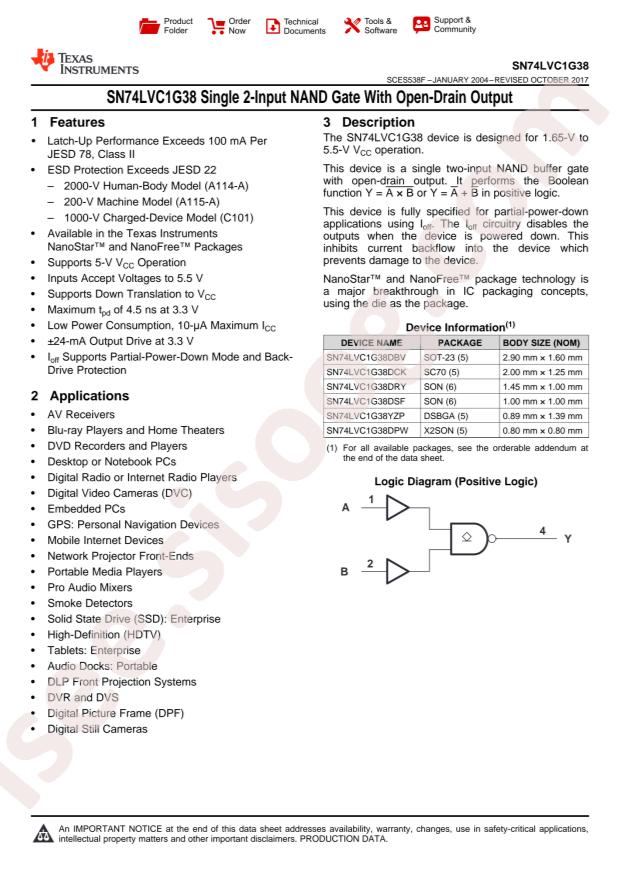

SN74LVC1G38DCKR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC1G38DCKR |
|---|---|
| حجم فایل | 98.013 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 38 |
دانلود دیتاشیت SN74LVC1G38DCKR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN74LVC1G38 Datasheet 38 pages
مشخصات فنی
- RoHS: true
- Series: 74LVC
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LVC1G38DCKR
- Sink Current: 32mA
- Supply Voltage: 1.65V~5.5V
- Logic Gate Type: NAND Gates
- Number of Channels: 1
- Low Level Range (VIL): 0.7V~0.8V
- Operating Temperature: -40°C~+125°C
- High Level Range (VIH): 1.7V~2V
- Propagation Delay Time: 3.9ns@5V,50pF
- Quiescent Current (Max): 10uA
- Package: SC-70-5
- Manufacturer: Texas Instruments
- Part Status: Active
- Max Propagation Delay @ V, Max CL: 3.9ns @ 5V, 50pF
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Logic Level - Low: 0.7V ~ 0.8V
- Current - Output High, Low: -, 32mA
- Base Part Number: SN74LVC1G
- Current - Quiescent (Max): 10µA
- Mounting Type: Surface Mount
- Number of Inputs: 2
- Voltage - Supply: 1.65V ~ 5.5V
- Number of Circuits: 1
- Packaging: Cut Tape (CT)
- Logic Type: NAND Gate
- Supplier Device Package: SC-70-5
- Features: Open Drain
- Logic Level - High: 1.7V ~ 2V
- detail: NAND Gate IC 1 Channel Open Drain SC-70-5
