SN74LVC2GU04 دیتاشیت

SN74LVC2GU04

مشخصات دیتاشیت

نام دیتاشیت SN74LVC2GU04
حجم فایل 1125.871 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

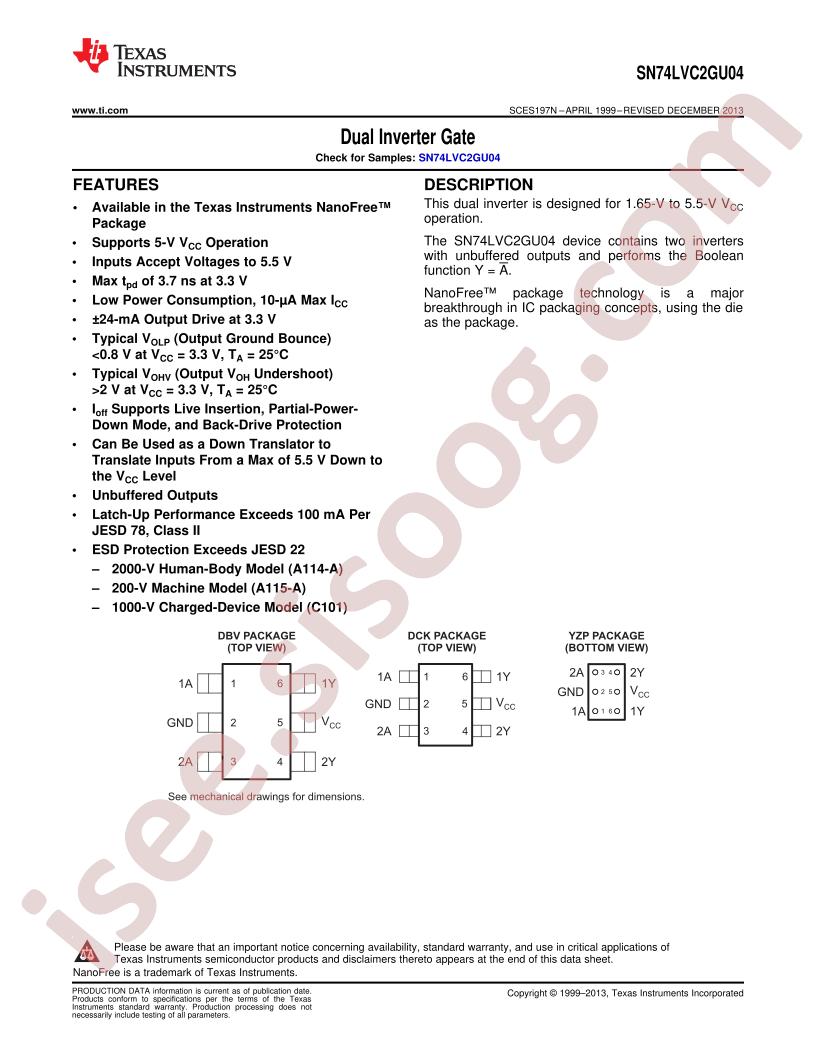

دانلود دیتاشیت SN74LVC2GU04

دانلود دیتاشیت

سایر مستندات

SN74LVC2GU04DBVR 18 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LVC
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74LVC2GU04DCKR
  • Input Type: -
  • Sink Current: 32mA
  • Source Current: 32mA
  • Number of Inputs: 2
  • Number of Circuits: 2
  • Supply Current (Max): 10uA
  • Low level range (VIL): 0.41V~1.38V
  • Max Propagation Delay: 3.5ns@5V,50pF
  • Operating Temperature: -40°C~+125°C
  • High level range (VIH): 1.24V~4.13V
  • Supply Voltage(Single): 1.65V~5.5V
  • Package: SC-70-6
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Max Propagation Delay @ V, Max CL: 3ns @ 5V, 50pF
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Logic Level - Low: -
  • Current - Output High, Low: 32mA, 32mA
  • Base Part Number: SN74LVC2G
  • Current - Quiescent (Max): 10µA
  • Mounting Type: Surface Mount
  • Voltage - Supply: 1.65V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Logic Type: Inverter
  • Supplier Device Package: SC-70-6
  • Features: -
  • Logic Level - High: -
  • detail: Inverter IC 2 Channel SC-70-6
