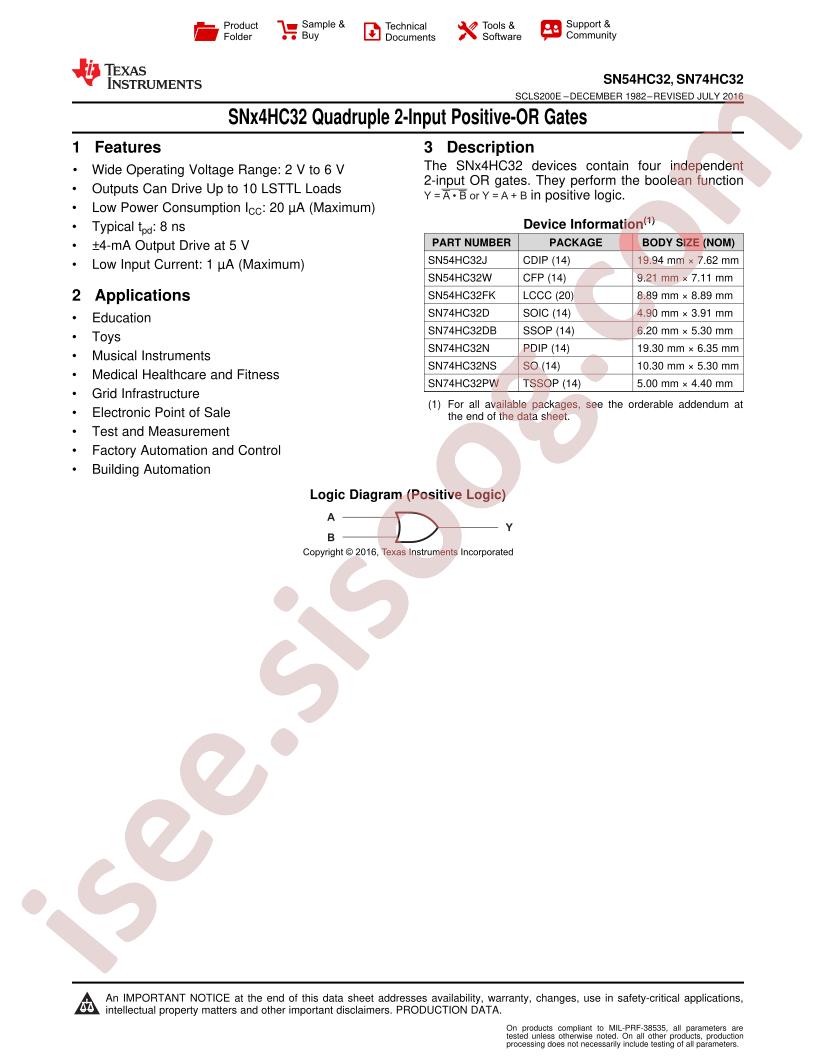

SN54HC32, SN74HC32 دیتاشیت

SN54HC32, SN74HC32

مشخصات دیتاشیت

نام دیتاشیت SN54HC32, SN74HC32
حجم فایل 1390.45 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

دانلود دیتاشیت SN54HC32, SN74HC32

دانلود دیتاشیت

سایر مستندات

SN74HC32DR 21 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74HC32PWR
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Logic Gate Type: ORGate
  • Number of Channels: 4
  • Low Level Range (VIL): 0.5V~1.8V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 1.5V~4.2V
  • Propagation Delay Time: 17ns@6V,50pF
  • Quiescent Current (Max): 2uA
  • Package: TSSOP-14
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Logic Level - Low: 0.5V ~ 1.8V
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Base Part Number: SN74HC3
  • Current - Quiescent (Max): 2µA
  • Mounting Type: Surface Mount
  • Number of Inputs: 2
  • Voltage - Supply: 2V ~ 6V
  • Number of Circuits: 4
  • Packaging: Cut Tape (CT)
  • Logic Type: OR Gate
  • Supplier Device Package: 14-TSSOP
  • Features: -
  • Logic Level - High: 1.5V ~ 4.2V
  • detail: OR Gate IC 4 Channel 14-TSSOP
