دیتاشیت SN74LVC04APWR
مشخصات دیتاشیت
| نام دیتاشیت | SN54LVC04A, SN74LVC04A |
|---|---|
| حجم فایل | 1485.903 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 36 |
دانلود دیتاشیت SN54LVC04A, SN74LVC04A |

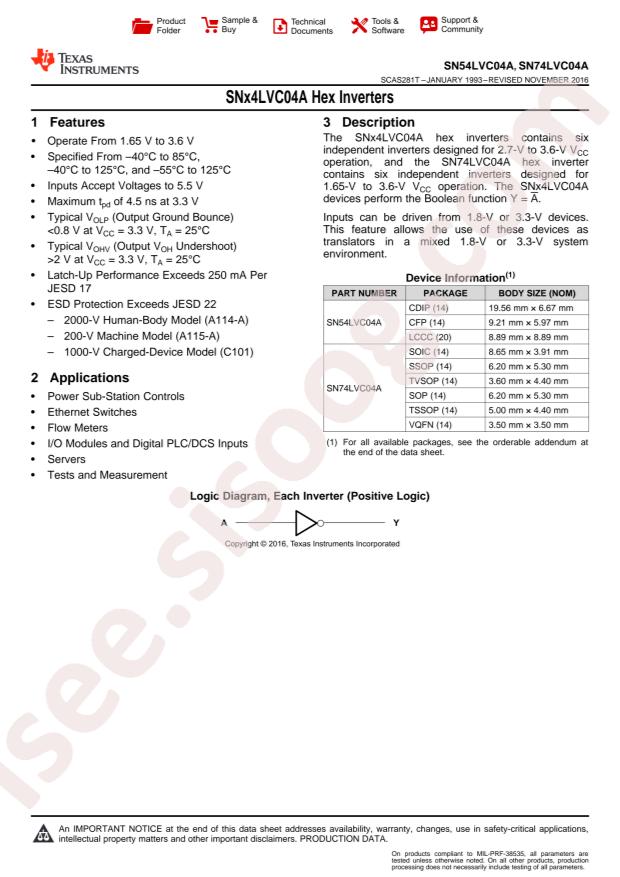

SN54LVC04A, SN74LVC04A Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LVC
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN74LVC04APWR
- Input Type: -
- Sink Current: 24mA
- Source Current: 24mA
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 1uA
- Low level range (VIL): 0.7V~0.8V
- Max Propagation Delay: 4.3ns@3.3V,50pF
- Operating Temperature: -40°C~+125°C
- High level range (VIH): 1.7V~2V
- Supply Voltage(Single): 1.65V~3.6V
- Package: TSSOP-14
- Manufacturer: Texas Instruments
- Part Status: Active
- Max Propagation Delay @ V, Max CL: 4.3ns @ 3.3V, 50pF
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Logic Level - Low: 0.7V ~ 0.8V
- Current - Output High, Low: 24mA, 24mA
- Base Part Number: SN74LVC04
- Current - Quiescent (Max): 1µA
- Mounting Type: Surface Mount
- Voltage - Supply: 1.65V ~ 3.6V
- Packaging: Cut Tape (CT)
- Logic Type: Inverter
- Supplier Device Package: 14-TSSOP
- Features: -
- Logic Level - High: 1.7V ~ 2V
- detail: Inverter IC 6 Channel 14-TSSOP
