دیتاشیت TLV1117LV28DCYR
مشخصات دیتاشیت
| نام دیتاشیت | TLV1117LVxx Datasheet |
|---|---|
| حجم فایل | 1025.395 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 25 |
دانلود دیتاشیت TLV1117LVxx Datasheet |
TLV1117LVxx Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TLV1117LV28DCYR
- Output Current: 1A
- Output Voltage: 2.8V
- Dropout Voltage: 1.3V@(800mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 100uA
- Power Supply Rejection Ratio (PSRR): 75dB@(120Hz)

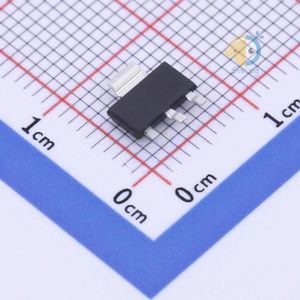

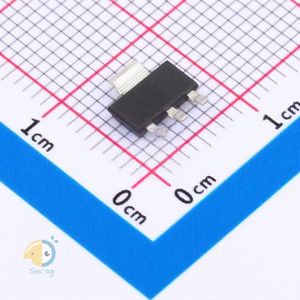

- Package: SOT-223-4
- Manufacturer: Texas Instruments
- Part Status: Active
- Current - Output: 1A
- Series: -
- Package / Case: TO-261-4, TO-261AA
- Voltage - Output (Min/Fixed): 2.8V
- Control Features: -
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Voltage - Output (Max): -
- Base Part Number: TLV111
- Protection Features: Over Current, Over Temperature
- PSRR: 75dB (120Hz)
- Voltage Dropout (Max): 1.3V @ 800mA
- Packaging: Cut Tape (CT)
- Output Type: Fixed
- Output Configuration: Positive
- Supplier Device Package: SOT-223-4
- Voltage - Input (Max): 5.5V
- Current - Quiescent (Iq): 100µA
- detail: Linear Voltage Regulator IC 1 Output 1A SOT-223-4
