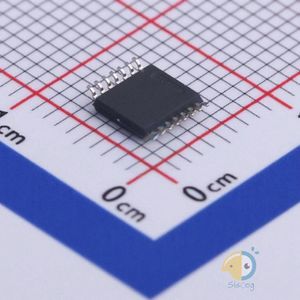

دیتاشیت CD74HCT14PWR
مشخصات دیتاشیت
| نام دیتاشیت |

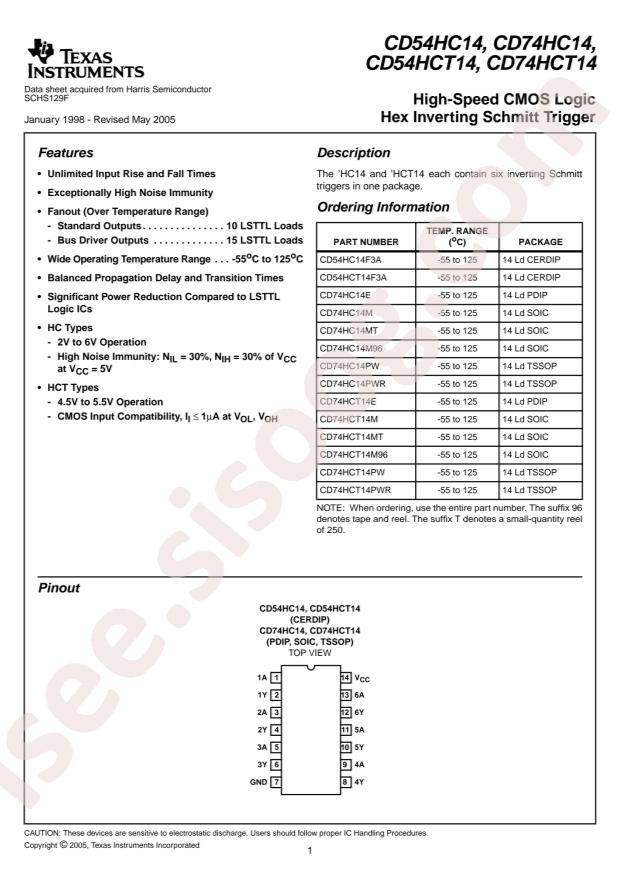

CD54,74HC(T)14
|
| حجم فایل |
1067.33
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Series:
74HCT
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments CD74HCT14PWR
-
Input Type:
Schmitt Trigger
-
Sink Current:
4mA
-
Source Current:
4mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
2uA
-
Low level range (VIL):
0.5V~0.6V
-
Max Propagation Delay:
38ns@4.5V,50pF
-
Operating Temperature:
-55°C~+125°C
-
High level range (VIH):
1.9V~2.1V
-
Supply Voltage(Single):
4.5V~5.5V
-
Package:
TSSOP-14
-
Manufacturer:
Texas Instruments
-
Part Status:
Active
-
Max Propagation Delay @ V, Max CL:
38ns @ 4.5V, 50pF
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Logic Level - Low:
0.5V ~ 0.6V
-
Current - Output High, Low:
4mA, 4mA
-
Base Part Number:
74HCT14
-
Current - Quiescent (Max):
2µA
-
Mounting Type:
Surface Mount
-
Voltage - Supply:
4.5V ~ 5.5V
-
Packaging:
Cut Tape (CT)
-
Logic Type:
Inverter
-
Supplier Device Package:
14-TSSOP
-
Features:
Schmitt Trigger
-
Logic Level - High:
1.9V ~ 2.1V
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-TSSOP
