دیتاشیت SN74LV4053ADR
مشخصات دیتاشیت
| نام دیتاشیت | SN54LV4053A, SN74LV4053A |
|---|---|
| حجم فایل | 1352.367 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |

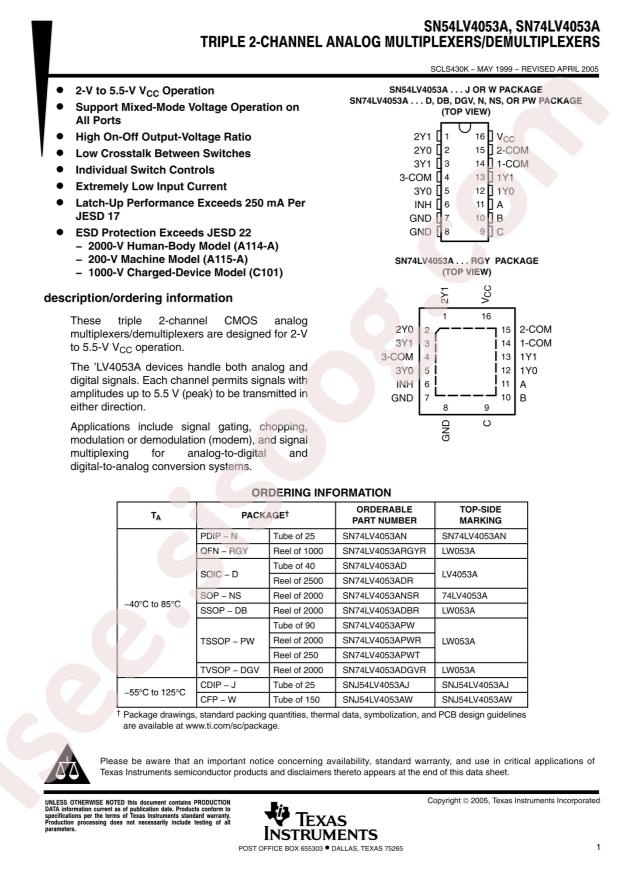

دانلود دیتاشیت SN54LV4053A, SN74LV4053A |
SN54LV4053A, SN74LV4053A Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Texas Instruments SN74LV4053ADR
- Turn-on time: 14ns
- Turn-off time: 14ns
- Supply Voltage: 2V~5.5V
- Switch Circuit: SPDT(SPDT)
- Number of Channels: 3
- On-State Resistance (Max): 75Ω
- Package: SOP-16
- Manufacturer: Texas Instruments
- Multiplexer/Demultiplexer Circuit: 2:1
- Mounting Type: Surface Mount
- Crosstalk: -45dB @ 1MHz
- Charge Injection: -
- Current - Leakage (IS(off)) (Max): 100nA
- Voltage - Supply, Single (V+): 2V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 14ns, 14ns
- -3db Bandwidth: 50MHz
- Channel-to-Channel Matching (ΔRon): 1.3Ohm
- Supplier Device Package: 16-SOIC
- Voltage - Supply, Dual (V±): -
- Operating Temperature: -40°C ~ 85°C (TA)
- Part Status: Active
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Base Part Number: SN74LV40
- Number of Circuits: 3
- Channel Capacitance (CS(off), CD(off)): 0.5pF, 8.2pF
- Series: -
- Packaging: Cut Tape (CT)
- detail: 3 Circuit IC Switch 2:1 75Ohm 16-SOIC
