SN74HCT00DR دیتاشیت

SN74HCT00DR

مشخصات دیتاشیت

نام دیتاشیت SN74HCT00DR
حجم فایل 73.786 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

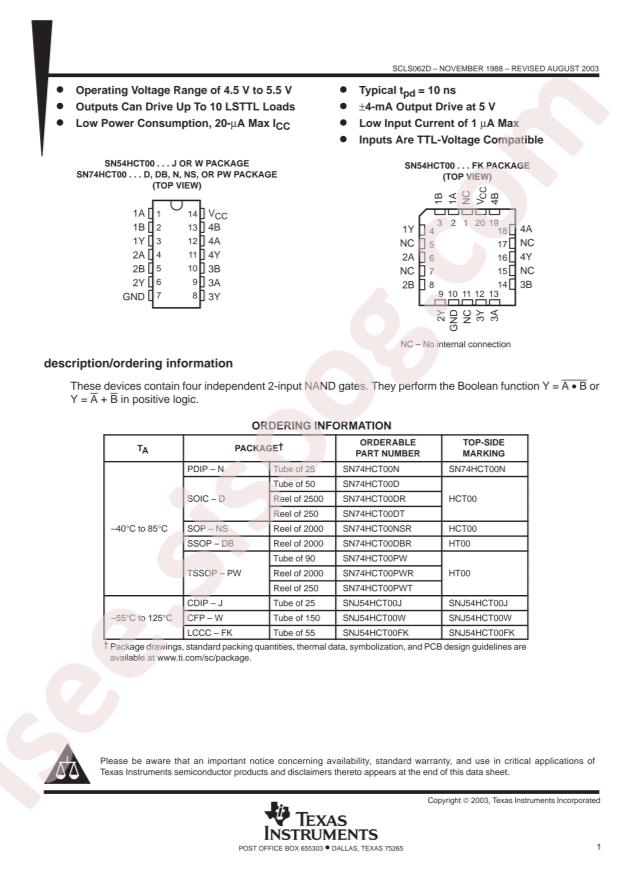

دانلود دیتاشیت SN74HCT00DR

دانلود دیتاشیت

سایر مستندات

SN54HCT00, SN74HCT00 16 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HCT
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74HCT00DR
  • Sink Current: 4mA
  • Source Current: 4mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: NAND Gates
  • Number of Channels: 4
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 18ns@5.5V,50pF
  • Quiescent Current (Max): 2uA
  • Package: SOIC-14
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Max Propagation Delay @ V, Max CL: 18ns @ 5.5V, 50pF
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Logic Level - Low: 0.8V
  • Current - Output High, Low: 4mA, 4mA
  • Base Part Number: SN74HCT
  • Current - Quiescent (Max): 2µA
  • Mounting Type: Surface Mount
  • Number of Inputs: 2
  • Voltage - Supply: 4.5V ~ 5.5V
  • Number of Circuits: 4
  • Packaging: Cut Tape (CT)
  • Logic Type: NAND Gate
  • Supplier Device Package: 14-SOIC
  • Features: -
  • Logic Level - High: 2V
  • detail: NAND Gate IC 4 Channel 14-SOIC
