SN74AUP1G02DCKR دیتاشیت

SN74AUP1G02DCKR

مشخصات دیتاشیت

نام دیتاشیت SN74AUP1G02DCKR
حجم فایل 93.875 کیلوبایت
نوع فایل pdf
تعداد صفحات 42

دانلود دیتاشیت SN74AUP1G02DCKR

دانلود دیتاشیت

سایر مستندات

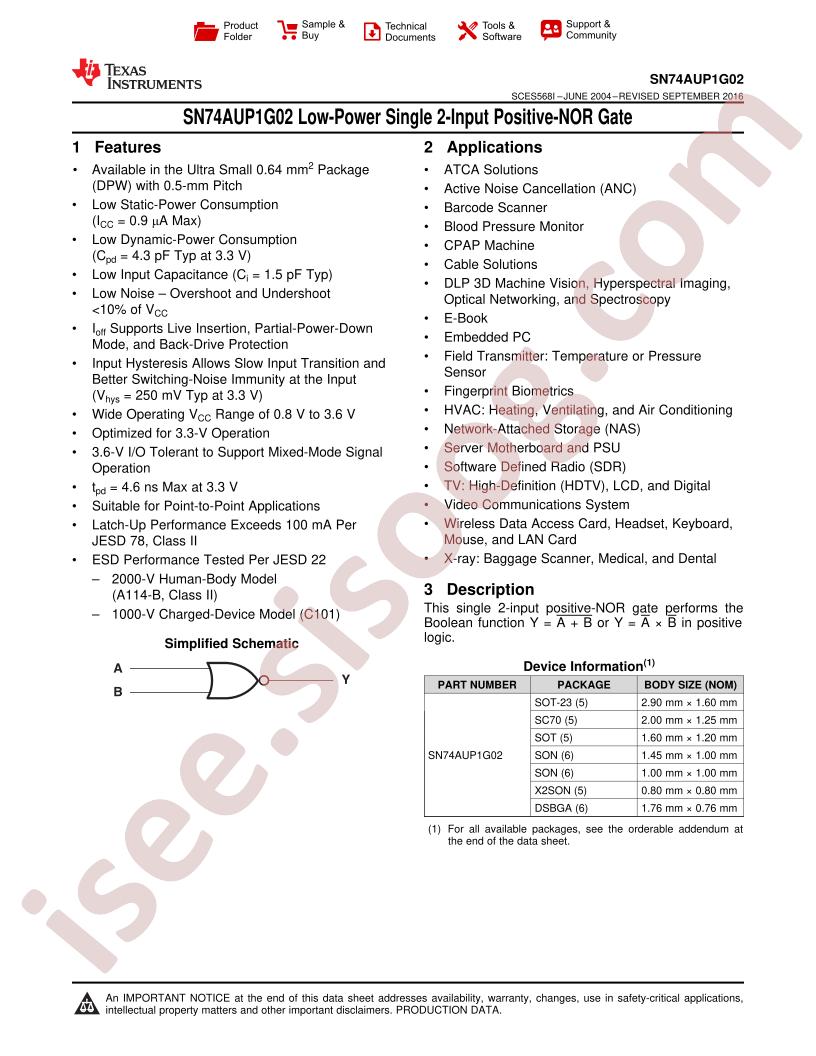

SN74AUP1G02 Datasheet 41 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AUP
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74AUP1G02DCKR
  • Sink Current: 4mA
  • Source Current: 4mA
  • Supply Voltage: 0.8V~3.6V
  • Logic Gate Type: NORGate
  • Number of Channels: 1
  • Low Level Range (VIL): 0.7V~0.9V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 1.6V~2V
  • Propagation Delay Time: 6.4ns@3.3V,30pF
  • Quiescent Current (Max): 500nA
  • Package: SC-70-5
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Max Propagation Delay @ V, Max CL: 6.4ns @ 3.3V, 30pF
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • Logic Level - Low: 0.7V ~ 0.9V
  • Current - Output High, Low: 4mA, 4mA
  • Base Part Number: SN74AUP
  • Current - Quiescent (Max): 500nA
  • Mounting Type: Surface Mount
  • Number of Inputs: 2
  • Voltage - Supply: 0.8V ~ 3.6V
  • Number of Circuits: 1
  • Packaging: Cut Tape (CT)
  • Logic Type: NOR Gate
  • Supplier Device Package: SC-70-5
  • Features: -
  • Logic Level - High: 1.6V ~ 2V
  • detail: NOR Gate IC 1 Channel SC-70-5
