- دیتاشیت SN74HC86DR

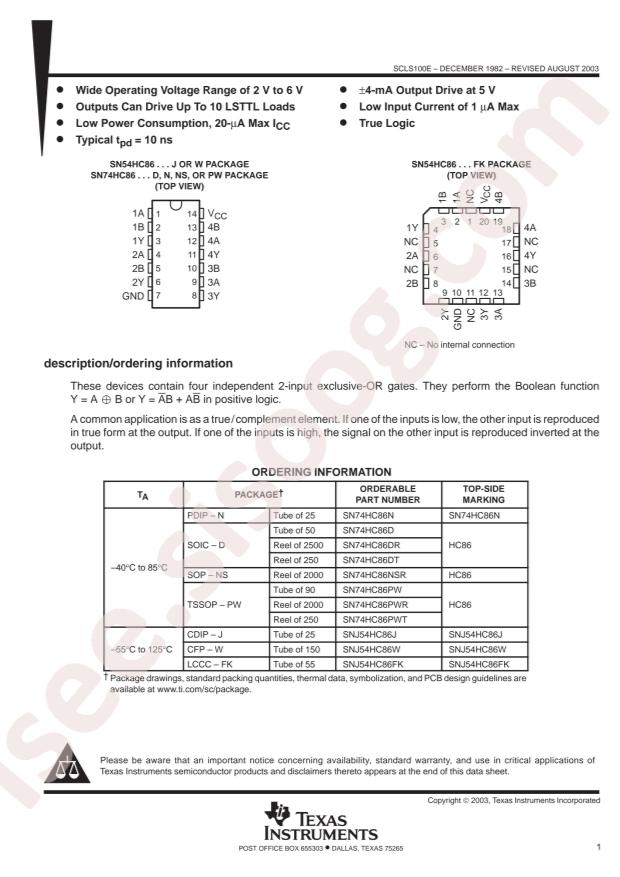

SN74HC86DR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74HC86DR |
|---|---|
| حجم فایل | 77.267 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت SN74HC86DR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54HC86, SN74HC86 21 pages
مشخصات فنی
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74HC86DR
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Logic Gate Type: XORGate
- Number of Channels: 4
- Low Level Range (VIL): 0.5V~1.8V
- Operating Temperature: -40°C~+85°C
- High Level Range (VIH): 1.5V~4.2V
- Propagation Delay Time: 17ns@6V,50pF
- Quiescent Current (Max): 2uA
- Package: SOP-14
- Manufacturer: Texas Instruments
- Part Status: Active
- Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Logic Level - Low: 0.5V ~ 1.8V
- Current - Output High, Low: 5.2mA, 5.2mA
- Base Part Number: SN74HC8
- Current - Quiescent (Max): 2µA
- Mounting Type: Surface Mount
- Number of Inputs: 2
- Voltage - Supply: 2V ~ 6V
- Number of Circuits: 4
- Packaging: Cut Tape (CT)
- Logic Type: XOR (Exclusive OR)
- Supplier Device Package: 14-SOIC
- Features: -
- Logic Level - High: 1.5V ~ 4.2V
- detail: XOR (Exclusive OR) IC 4 Channel 14-SOIC
