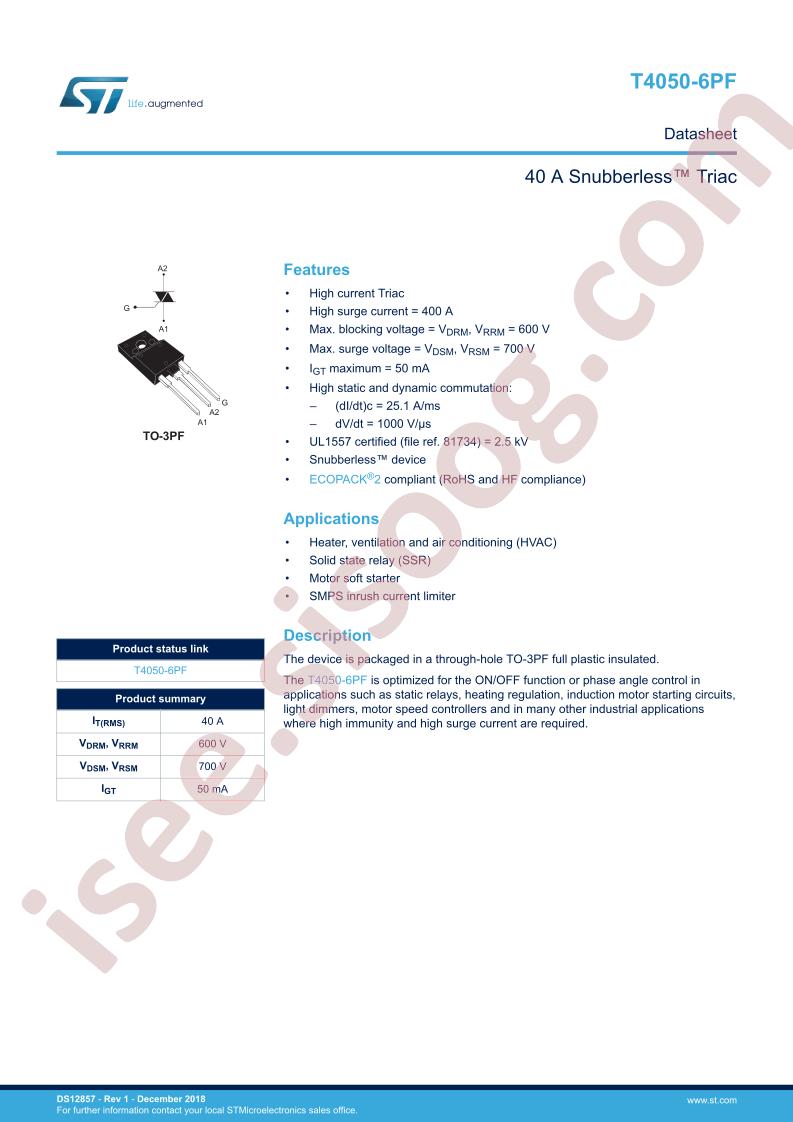

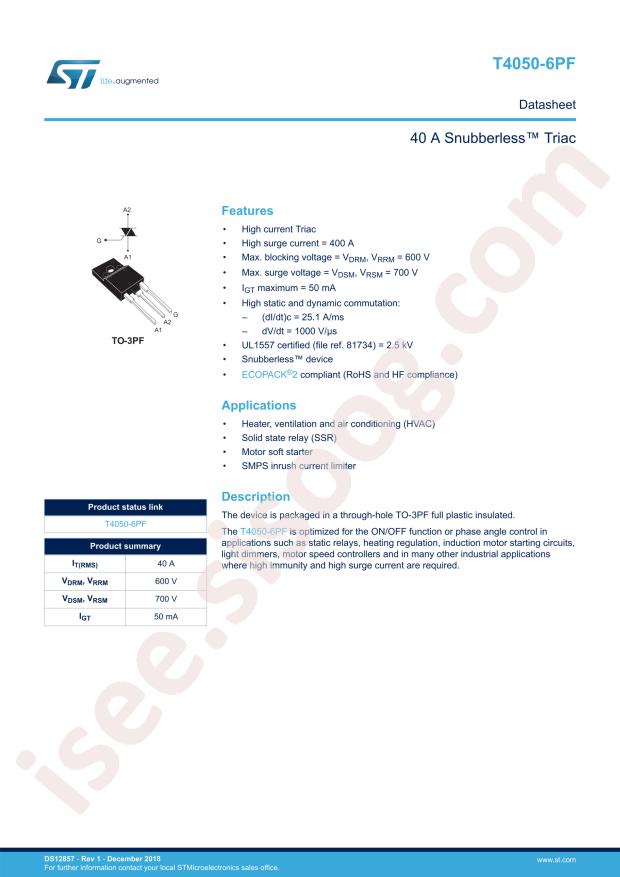

T4050-6PF Datasheet

T4050-6PF

Datasheet specifications

Datasheet's name T4050-6PF
File size 49.59 KB
File type pdf
Number of pages 11

Download Datasheet T4050-6PF

Download Datasheet

Other documentations

T4050-6PF Datasheet 11 pages

Technical specifications

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/TRIACs
  • SCR Type: Two-way thyristor-交流电机
  • Datasheet: STMicroelectronics T4050-6PF
  • Holding Current (Ih): 85mA
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Gate Trigger Current(Igt): 50mA
  • Gate Trigger Voltage (Vgt): 1.3V
  • RMS On-State Current(It (rms)): 40A
  • Peak Repetitive Off?State Voltage (Vdrm): 600V
  • Package: TO-3P-3
  • Manufacturer: STMicroelectronics
  • Series: Snubberless™
  • Packaging: Tube
  • Part Status: Active
  • Triac Type: Alternistor - Snubberless
  • Voltage - Off State: 600V
  • Current - On State (It (RMS)) (Max): 40A
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 420A, 400A
  • Current - Gate Trigger (Igt) (Max): 50mA
  • Current - Hold (Ih) (Max): 85mA
  • Configuration: Single
  • Mounting Type: Through Hole
  • Package / Case: TO-3P-3 Full Pack
  • Supplier Device Package: TO-3PF
  • Base Part Number: T4050
  • detail: TRIAC Alternistor - Snubberless 600V 40A Through Hole TO-3PF
