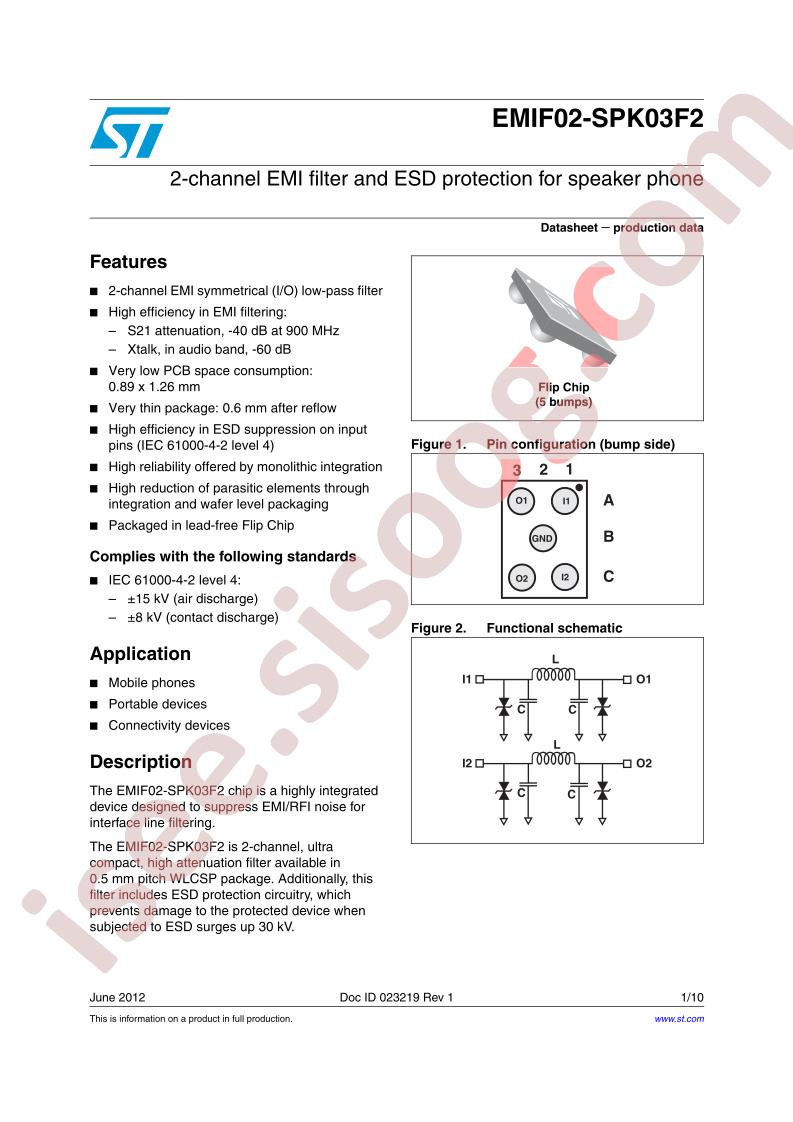

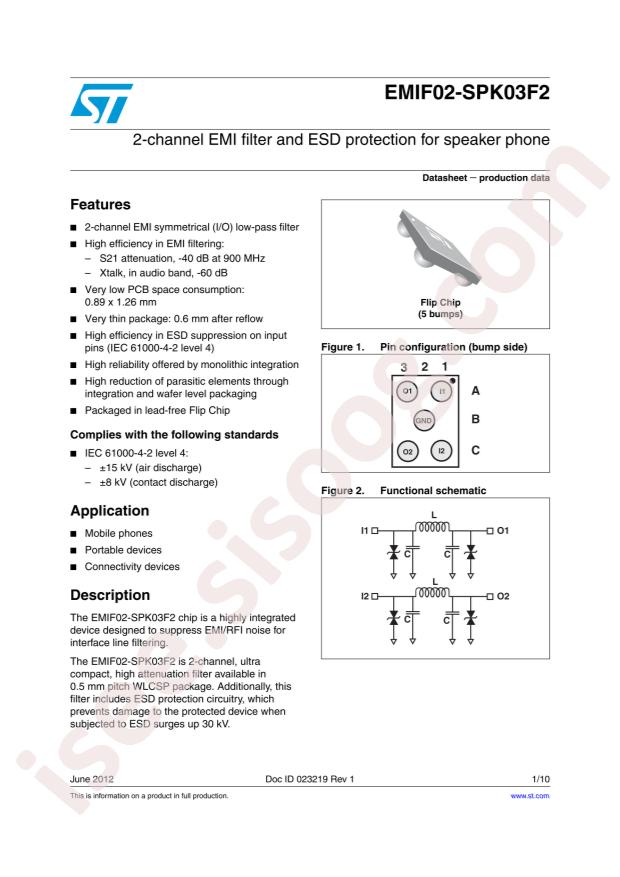

دیتاشیت EMIF02-SPK03F2
مشخصات دیتاشیت
| نام دیتاشیت |
EMIF02-SPK03F2
|
| حجم فایل |
284.793
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
Bead/Filter/EMI Optimization/EMI Filters (LC, RC Networks)
-
Datasheet:
STMicroelectronics EMIF02-SPK03F2
-
Capacitance:
250pF
-
Filter Order:
3
-
ESD Protection:
Yes
-
Attenuation Value:
40dB@900MHz
-
Number of Channels:
2
-
OperatingTemperature:
-30°C~+85°C
-
Package:
SMD
-
Manufacturer:
STMicroelectronics
-
Series:
EMIF
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Low Pass
-
Technology:
LC (Pi)
-
Center / Cutoff Frequency:
-
-
Resistance - Channel (Ohms):
0.07
-
Current:
800mA
-
Values:
C = 250pF
-
Operating Temperature:
-30°C ~ 85°C
-
Applications:
Audio
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
5-WFBGA, FCBGA
-
Size / Dimension:
0.050" L x 0.035" W (1.26mm x 0.89mm)
-
Height:
0.028" (0.70mm)
-
Base Part Number:
EMIF02
-
detail:
LC (Pi) EMI Filter 3rd Order Low Pass 2 Channel C = 250pF 800mA 5-WFBGA, FCBGA
