ESDALC14-1BF4 数据手册
其他文档

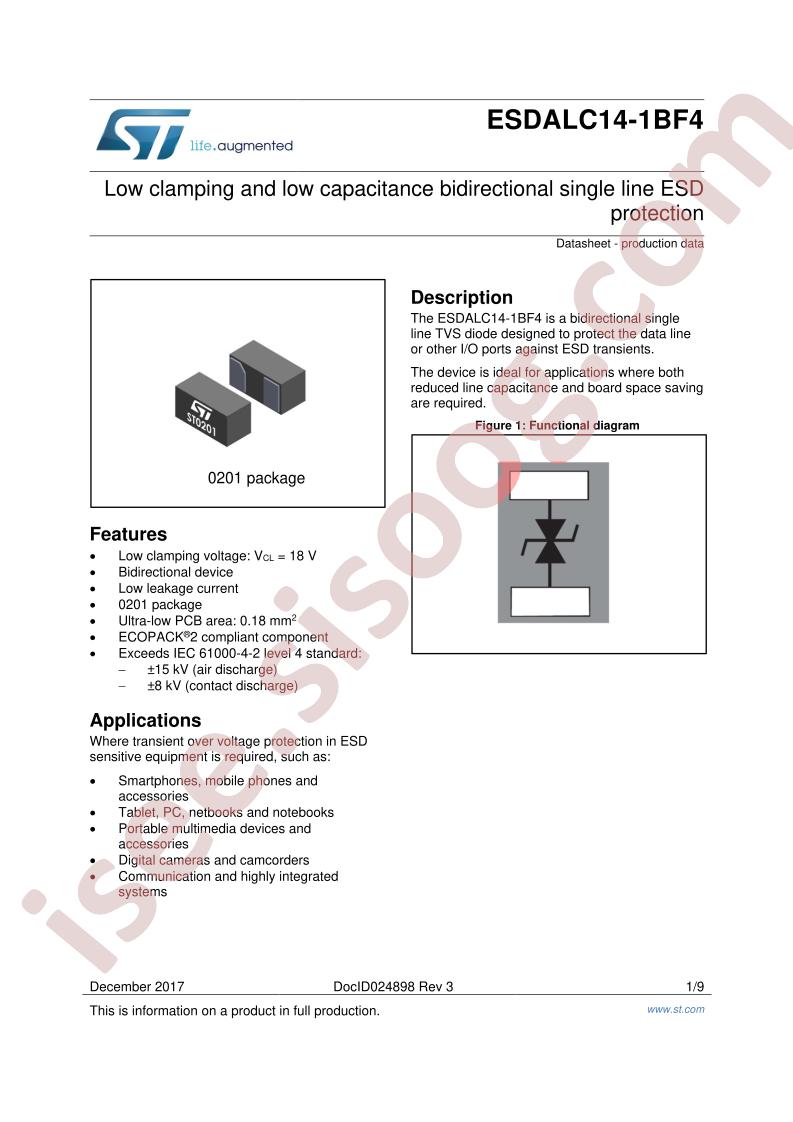

ESDALC14-1BF4 9 pages
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet: STMicroelectronics ESDALC14-1BF4
- Clamping Voltage@Ipp: 18V
- Operating Temperature: -40°C~+150°C@(Tj)
- Breakdown Voltage (VBR): 13V
- Peak Pulse Power(Ppp)@8/20us: 100W
- Junction Capacitance(Cj)@1MHz: 22pF@1MHz
- Peak Pulse Current(Ipp)@8/20us: 5A@(8/20us)
- Reverse Stand-Off Voltage (Vrwm): 5V
- Package: 0201
- Manufacturer: STMicroelectronics
- Series: ESDA
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 5V
- Voltage - Breakdown (Min): 13V
- Voltage - Clamping (Max) @ Ipp: 18V (Typ)
- Current - Peak Pulse (10/1000µs): 5A (8/20µs)
- Power - Peak Pulse: 100W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 22pF @ 1MHz
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: 0201
- Base Part Number: ESDALC14
- detail: 18V (Typ) Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 0201
