دیتاشیت TLV70033DDCT
مشخصات دیتاشیت
| نام دیتاشیت | TLV700xx Datasheet |
|---|---|
| حجم فایل | 1294.4 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 37 |

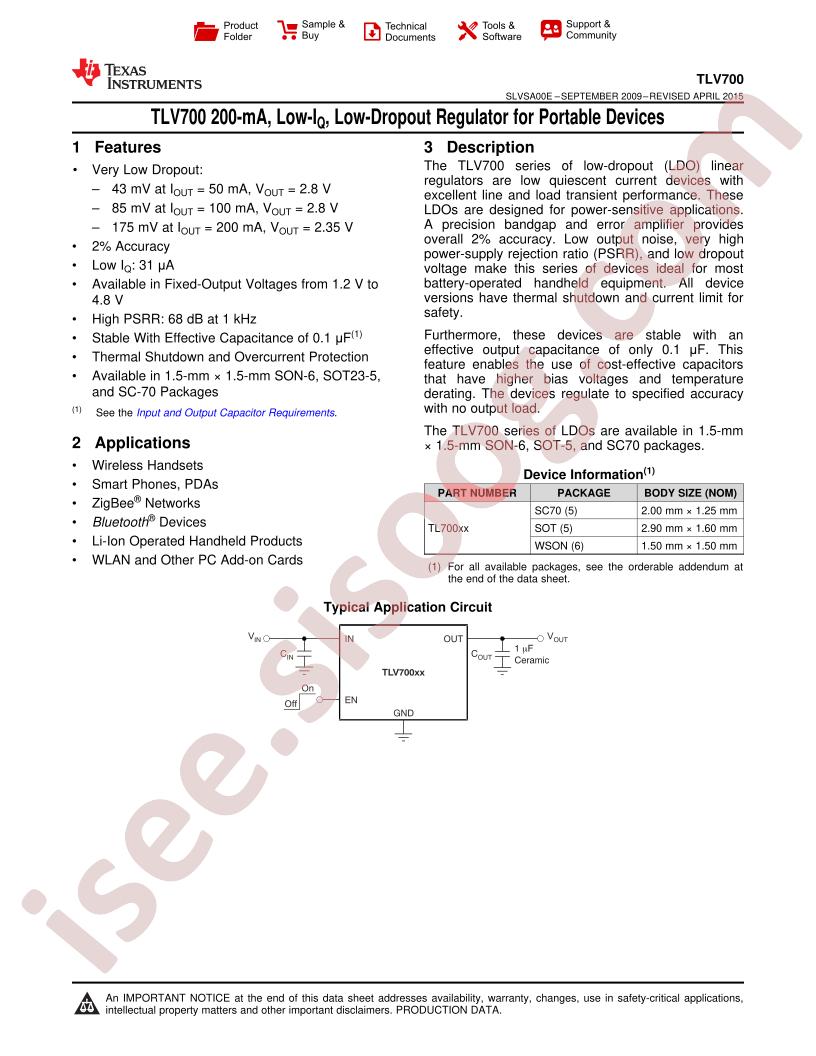

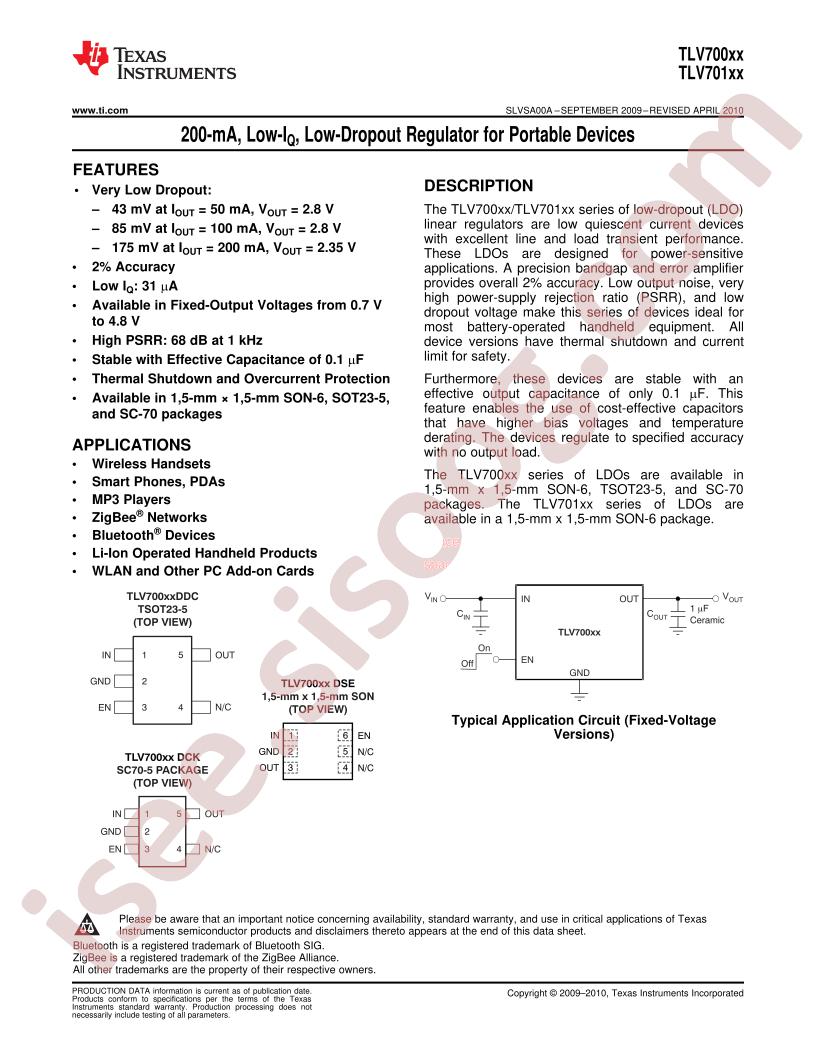

دانلود دیتاشیت TLV700xx Datasheet |
TLV700xx Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TLV70033DDCT
- Output Current: 200mA
- Output Voltage: 3.3V
- Dropout Voltage: 0.25V@(200mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 55uA
- Power Supply Rejection Ratio (PSRR): 68dB@(1kHz)
- Package: SOT-23-Thin-5
- Manufacturer: Texas Instruments
- Current - Supply (Max): 270µA
- Output Configuration: Positive
- Package / Case: SOT-23-5 Thin, TSOT-23-5
- Packaging: Cut Tape (CT)
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Number of Regulators: 1
- Part Status: Active
- Current - Quiescent (Iq): 55µA
- Supplier Device Package: SOT-23-5
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 3.3V
- Mounting Type: Surface Mount
- PSRR: 68dB (1kHz)
- Base Part Number: TLV700
- Series: -
- Output Type: Fixed
- Control Features: Enable
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.25V @ 200mA
- Current - Output: 200mA
- detail: Linear Voltage Regulator IC 1 Output 200mA SOT-23-5
