دیتاشیت SN74AC04PWR
مشخصات دیتاشیت
| نام دیتاشیت | SN54AC04, SN74AC04 Datasheet |
|---|---|
| حجم فایل | 1278.752 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت SN54AC04, SN74AC04 Datasheet |

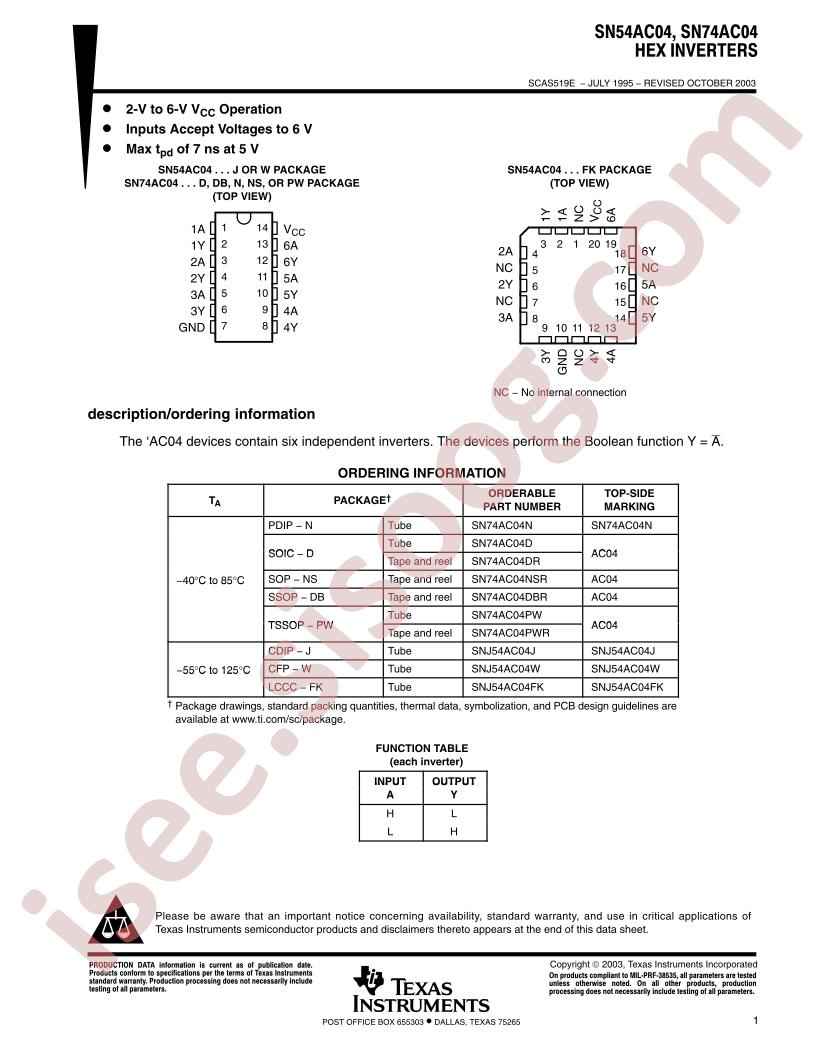

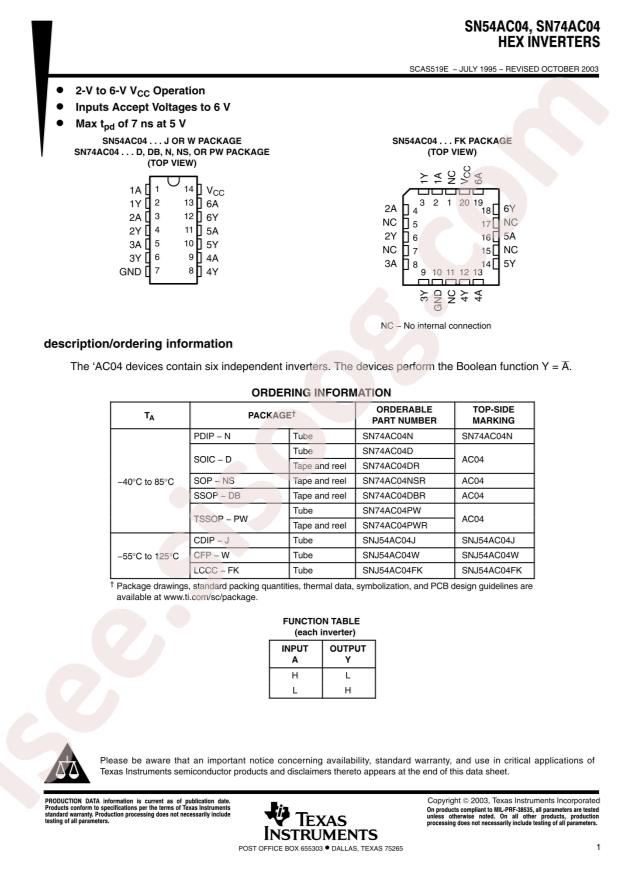

SN54AC04, SN74AC04 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74AC
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN74AC04PWR
- Input Type: -
- Sink Current: 24mA
- Source Current: 24mA
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 2uA
- Low level range (VIL): 0.9V~1.65V
- Max Propagation Delay: 7ns@5V,50pF
- Operating Temperature: -40°C~+85°C
- High level range (VIH): 2.1V~3.85V
- Supply Voltage(Single): 2V~6V
- Package: TSSOP-14
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Logic Level - Low: 0.9V ~ 1.65V
- Current - Quiescent (Max): 2µA
- Voltage - Supply: 2V ~ 6V
- Packaging: Cut Tape (CT)
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Logic Level - High: 2.1V ~ 3.85V
- Part Status: Active
- Current - Output High, Low: 24mA, 24mA
- Features: -
- Base Part Number: SN74AC0
- Supplier Device Package: 14-TSSOP
- Logic Type: Inverter
- Max Propagation Delay @ V, Max CL: 7ns @ 5V, 50pF
- detail: Inverter IC 6 Channel 14-TSSOP
