دیتاشیت SN74LV4051ADR

مشخصات دیتاشیت

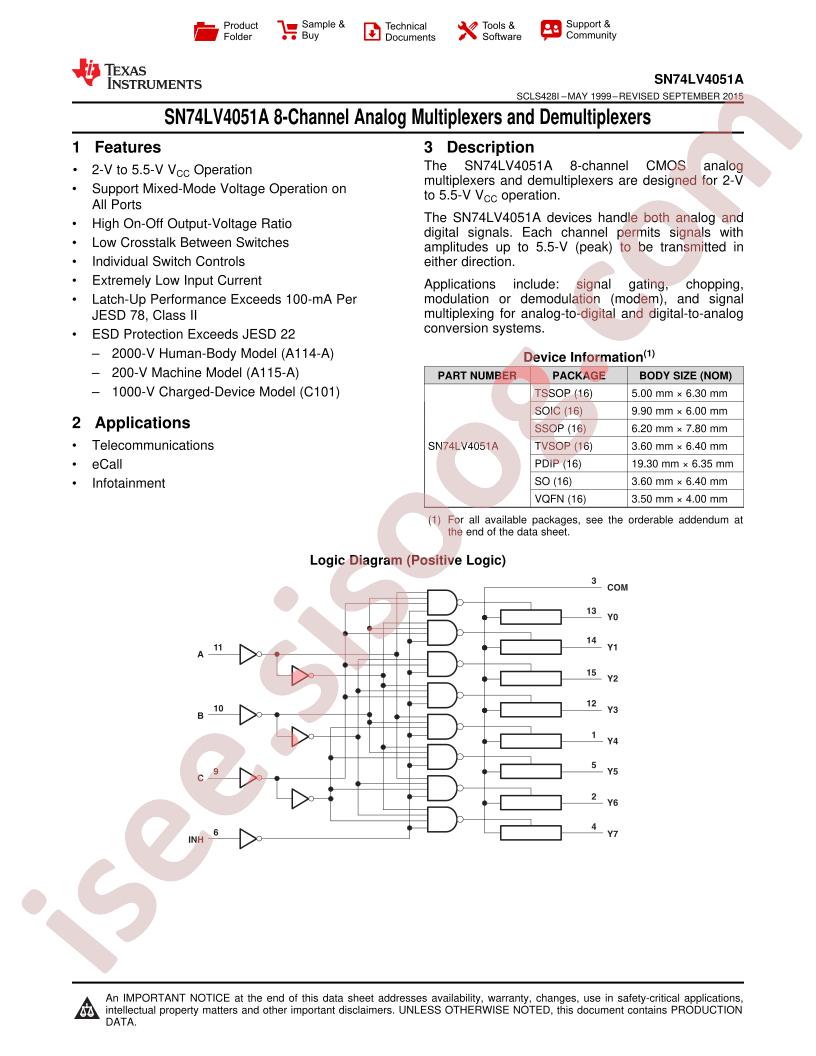

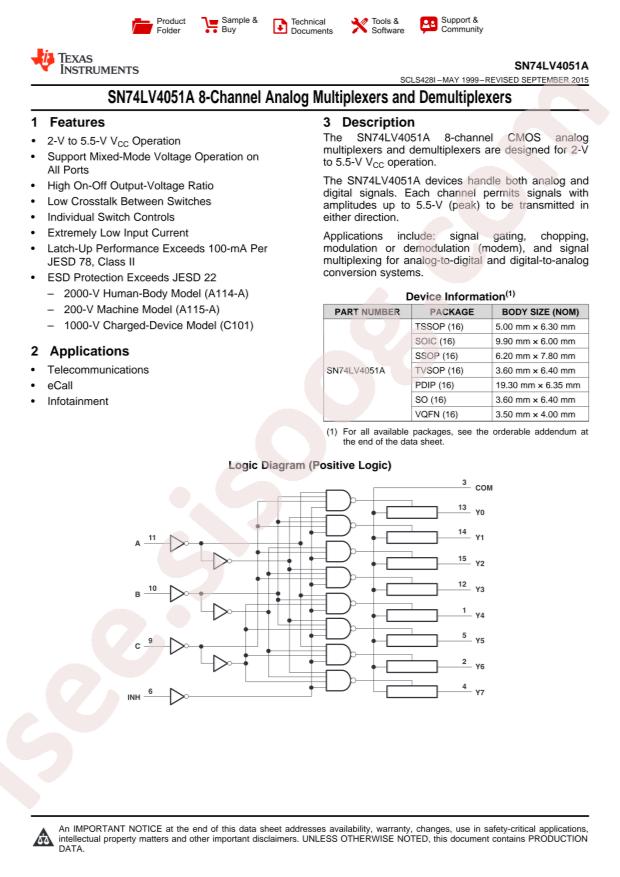

دانلود دیتاشیت SN(54,74)LV4051 Datasheet	SN(54,74)LV4051 Datasheet Datasheet

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments SN74LV4051ADR
Turn-on time: 14ns
Turn-off time: 14ns
Supply Voltage: 2V~5.5V
Number of Channels: 1
On-State Resistance (Max): 75Ω
Package: SOP-16
Manufacturer: Texas Instruments
Current - Leakage (IS(off)) (Max): 100nA
Voltage - Supply, Single (V+): 2V ~ 5.5V
Voltage - Supply, Dual (V±): -
Number of Circuits: 1
Channel-to-Channel Matching (ΔRon): 1.3Ohm
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Part Status: Active
Supplier Device Package: 16-SOIC
Switch Circuit: -
Switch Time (Ton, Toff) (Max): 14ns, 14ns
Packaging: Cut Tape (CT)
-3db Bandwidth: 35MHz
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Crosstalk: -
Base Part Number: SN74LV40
Series: -
Channel Capacitance (CS(off), CD(off)): 0.5pF, 23.4pF
Multiplexer/Demultiplexer Circuit: 8:1
Charge Injection: -
detail: 1 Circuit IC Switch 8:1 75Ohm 16-SOIC
