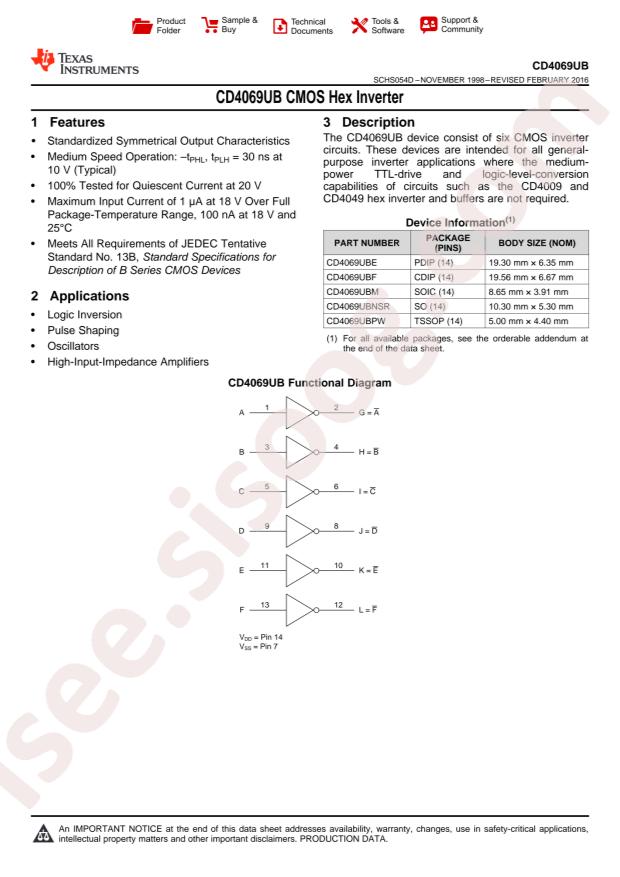

- دیتاشیت CD4069UBM96
CD4069UBM96 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | CD4069UBM96 |
|---|---|
| حجم فایل | 68.958 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت CD4069UBM96 |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
CD4069UB Types 31 pages
مشخصات فنی
- RoHS: true
- Series: 4000B
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments CD4069UBM96
- Input Type: -
- Sink Current: 3.4mA
- Source Current: 3.4mA
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 1uA
- Low level range (VIL): 1V~2.5V
- Max Propagation Delay: 50ns@15V,50pF
- Operating Temperature: -55°C~+125°C
- High level range (VIH): 4V~12.5V
- Supply Voltage(Single): 3V~18V
- Package: SOP-14
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Logic Level - Low: 1V ~ 2.5V
- Current - Quiescent (Max): 1µA
- Voltage - Supply: 3V ~ 18V
- Packaging: Cut Tape (CT)
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Logic Level - High: 4V ~ 12.5V
- Part Status: Active
- Current - Output High, Low: 3.4mA, 3.4mA
- Features: -
- Base Part Number: CD4069
- Supplier Device Package: 14-SOIC
- Logic Type: Inverter
- Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF
- detail: Inverter IC 6 Channel 14-SOIC
