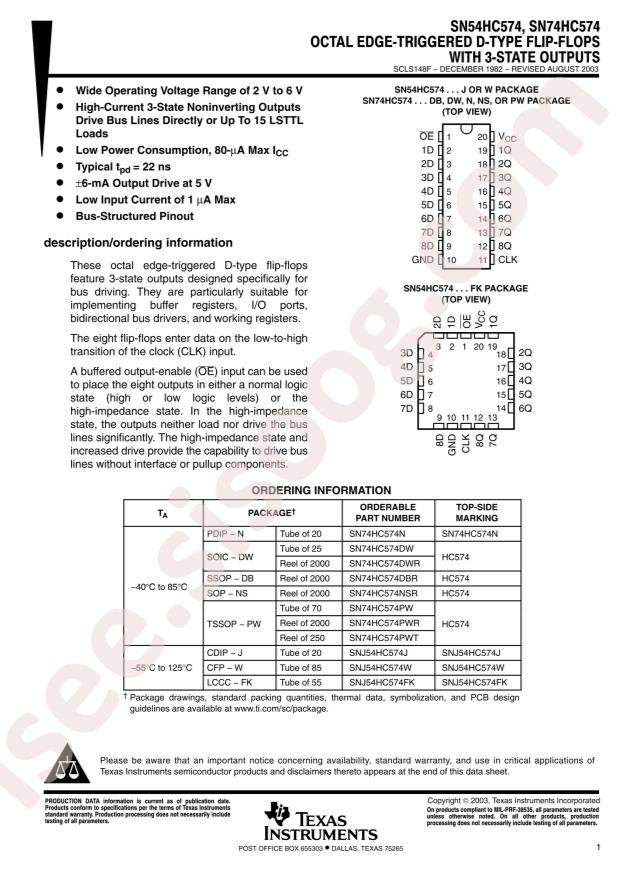

SN74HC574PWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74HC574PWR |
|---|---|
| حجم فایل | 104.475 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت SN74HC574PWR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54HC574, SN74HC574 25 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74HC
- Category: Logic ICs/Flip Flops
- Function: -
- Datasheet: Texas Instruments SN74HC574PWR
- Output Type: Tri-State;Non-Inverted
- Sink Current: 7.8mA
- Trigger Type: 上升沿
- Source Current: 7.8mA
- Supply Voltage: 2V~6V
- Clock Frequency: 40MHz
- Input Capacitance: 3pF
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Iq): 8uA
- Maximum Propagation Delay: 31ns@6V,50pF
- Number of Bits per Element: 8

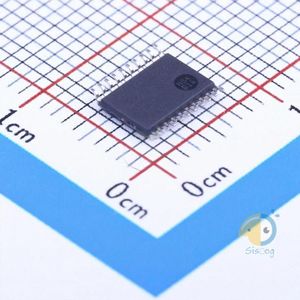

- Package: TSSOP-20
- Manufacturer: Texas Instruments
- Voltage - Supply: 2V ~ 6V
- Package / Case: 20-TSSOP (0.173", 4.40mm Width)
- Packaging: Cut Tape (CT)
- Supplier Device Package: 20-TSSOP
- Current - Output High, Low: 7.8mA, 7.8mA
- Part Status: Active
- Base Part Number: SN74HC5
- Mounting Type: Surface Mount
- Current - Quiescent (Iq): 8µA
- Max Propagation Delay @ V, Max CL: 31ns @ 6V, 50pF
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width)
