CD4050BDR Datasheet
Datasheet specifications
| Datasheet's name | CD4050BDR |
|---|---|
| File size | 83.56 KB |
| File type | |
| Number of pages | 35 |
Download Datasheet CD4050BDR |
Download Datasheet |
|---|
Other documentations

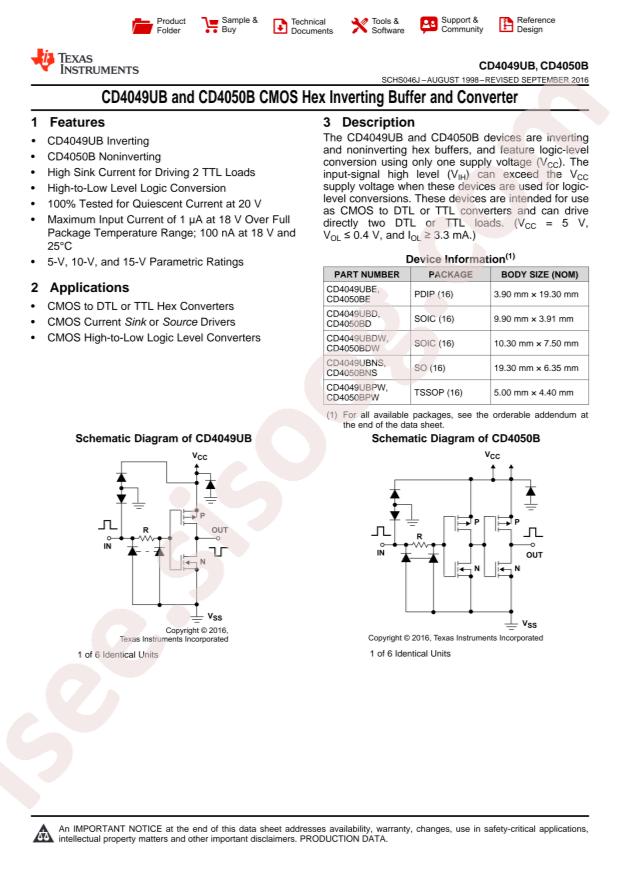

CD4049UB, CD4050B Datasheet 35 pages
Technical specifications
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments CD4050BDR
- output type: Push Pull
- Logic Family: 4000B
- Sink Current: 48mA
- Source Current: 8mA
- Supply Voltage: 3V~18V
- Operating Temperature: -55°C~+125°C
- Number of Bits per Element: 1
- Package: SOP-16
- Manufacturer: Texas Instruments
- Number of Elements: 6
- Voltage - Supply: 3V ~ 18V
- Input Type: -
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Current - Output High, Low: 8mA, 48mA
- Series: 4000B
- Supplier Device Package: 16-SOIC
- Logic Type: Buffer, Non-Inverting
- Base Part Number: CD4050
- detail: Buffer, Non-Inverting 6 Element 1 Bit per Element Push-Pull Output 16-SOIC
