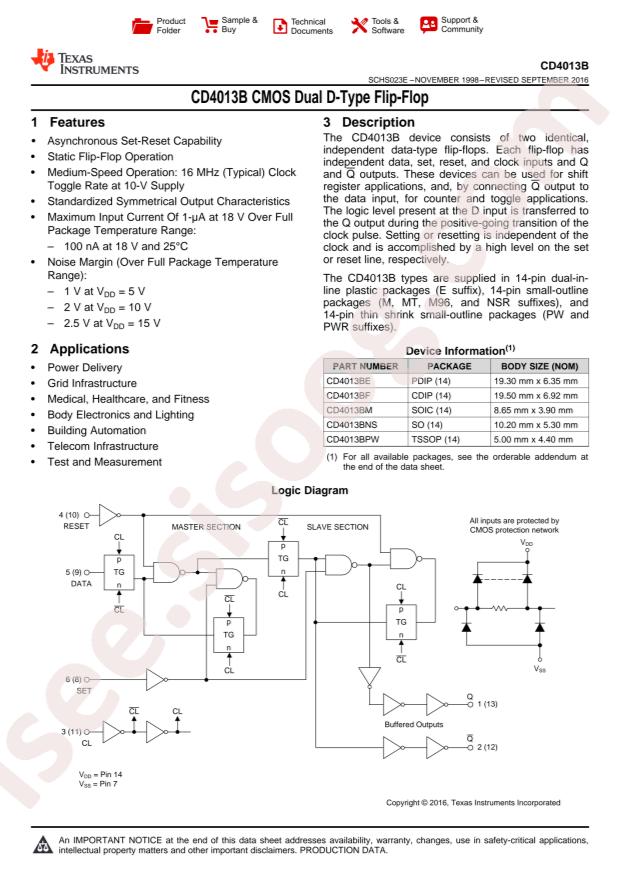

CD4013BPWR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CD4013BPWR
|
|
حجم فایل
|
95.219
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
29
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
4000B
-
Category:
Logic ICs/Flip Flops
-
Function:
置位和复位
-
Datasheet:
Texas Instruments CD4013BPWR
-
Output Type:
互补型
-
Sink Current:
6.8mA
-
Trigger Type:
上升沿
-
Source Current:
6.8mA
-
Supply Voltage:
3V~18V
-
Clock Frequency:
24MHz
-
Input Capacitance:
5pF
-
Number of Elements:
2
-
Operating Temperature:
-55°C~+125°C
-
Quiescent Current (Iq):
4uA
-
Maximum Propagation Delay:
90ns@15V,50pF
-
Number of Bits per Element:
1
-

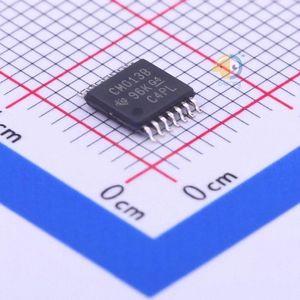

Package:
TSSOP-14
-
Manufacturer:
Texas Instruments
-
Voltage - Supply:
3V ~ 18V
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Packaging:
Cut Tape (CT)
-
Supplier Device Package:
14-TSSOP
-
Current - Output High, Low:
6.8mA, 6.8mA
-
Part Status:
Active
-
Base Part Number:
CD4013
-
Mounting Type:
Surface Mount
-
Current - Quiescent (Iq):
4µA
-
Max Propagation Delay @ V, Max CL:
90ns @ 15V, 50pF
-
detail:
Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-TSSOP (0.173", 4.40mm Width)
