دیتاشیت SN74HC174DR
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC174, SN74HC174 |
|---|---|
| حجم فایل | 1240.264 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت SN54HC174, SN74HC174 |

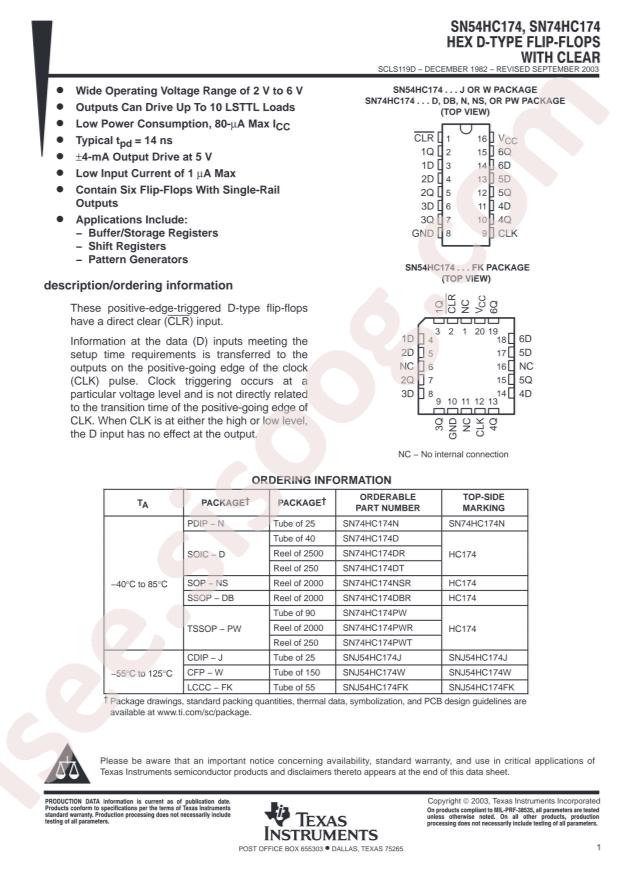

SN54HC174, SN74HC174 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: D-Type
- Series: 74HC
- Category: Logic ICs/Flip Flops
- Function: Reset
- Datasheet: Texas Instruments SN74HC174DR
- Output Type: Non-Inverted
- Sink Current: 5.2mA
- Trigger Type: 上升沿
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Clock Frequency: 50MHz
- Input Capacitance: 3pF
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Iq): 8uA
- Maximum Propagation Delay: 14ns@6V,50pF
- Number of Bits per Element: 6
- Package: SOP-16
- Manufacturer: Texas Instruments
- Voltage - Supply: 2V ~ 6V
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Packaging: Cut Tape (CT)
- Supplier Device Package: 16-SOIC
- Current - Output High, Low: 5.2mA, 5.2mA
- Part Status: Active
- Base Part Number: SN74HC1
- Mounting Type: Surface Mount
- Current - Quiescent (Iq): 8µA
- Max Propagation Delay @ V, Max CL: 14ns @ 6V, 50pF
- detail: Flip Flop 1 Element D-Type 6 Bit Positive Edge 16-SOIC (0.154", 3.90mm Width)
