دیتاشیت SN74LV244APWR

مشخصات دیتاشیت

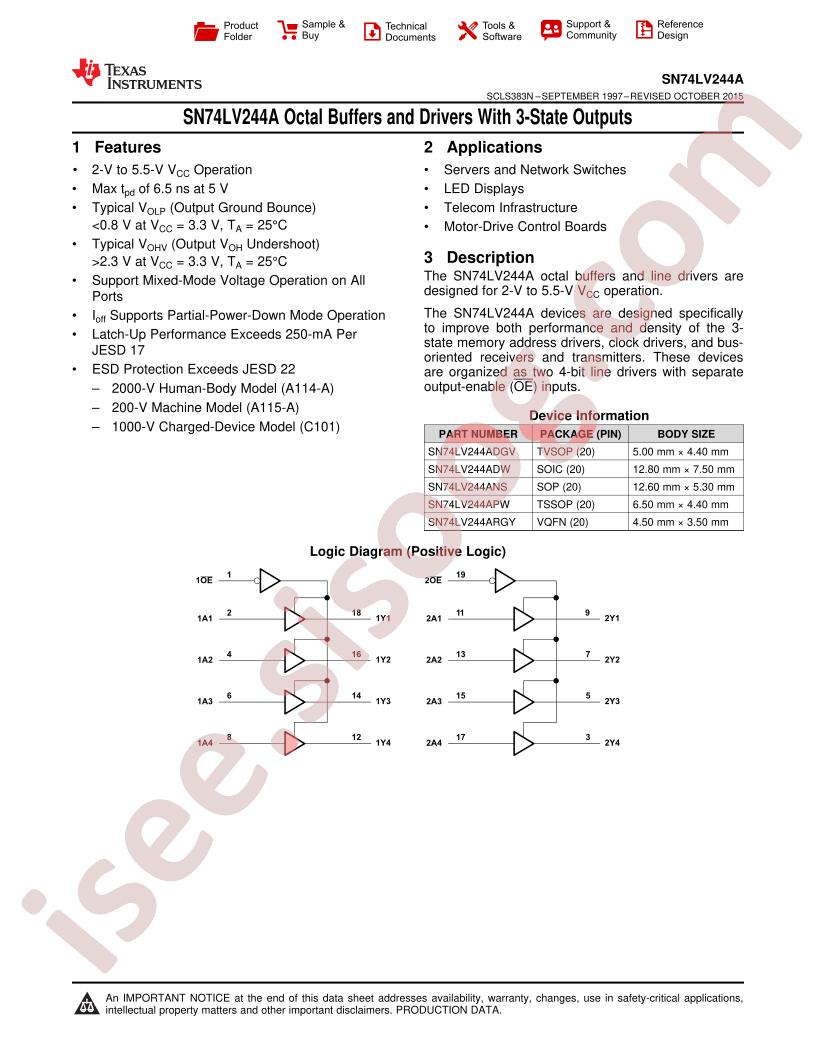

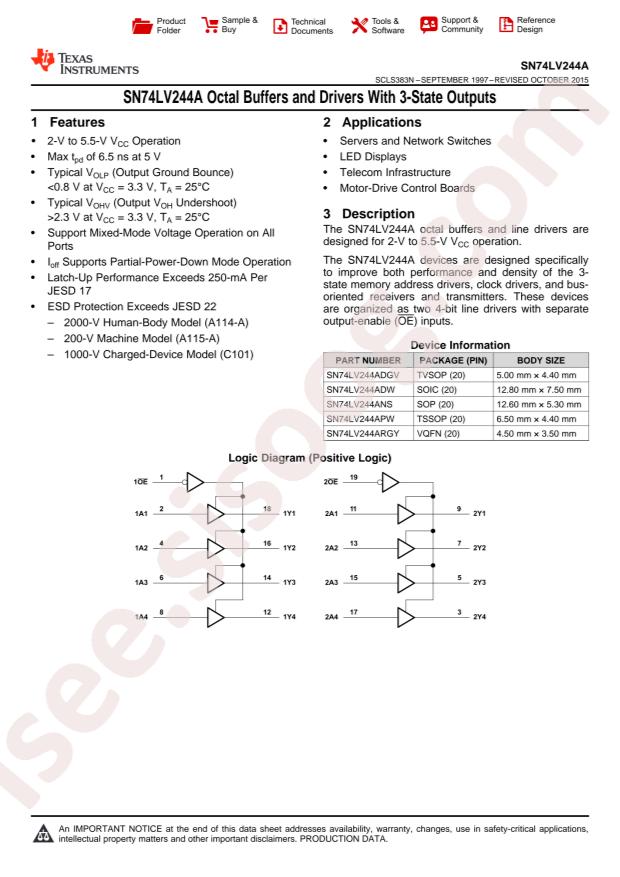

دانلود دیتاشیت SN54LV244A, SN74LV244A	SN54LV244A, SN74LV244A Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74LV244APWR
Input type: -
output type: Tri-State
Logic Family: 74LV
Sink Current: 16mA
Source Current: 16mA
Supply Voltage: 2V~5.5V
Number of Elements: 2
Operating Temperature: -40°C~+125°C
Number of Bits per Element: 4
Package: TSSOP-20
Manufacturer: Texas Instruments
Voltage - Supply: 2V ~ 5.5V
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)
Package / Case: 20-TSSOP (0.173", 4.40mm Width)
Part Status: Active
Current - Output High, Low: 16mA, 16mA
Series: 74LV
Supplier Device Package: 20-TSSOP
Logic Type: Buffer, Non-Inverting
Base Part Number: SN74LV24
detail: Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-TSSOP
