دیتاشیت ESDALC5-1BM2

ESDALC5-1Bx2

مشخصات دیتاشیت

نام دیتاشیت ESDALC5-1Bx2
حجم فایل 768.755 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت ESDALC5-1Bx2

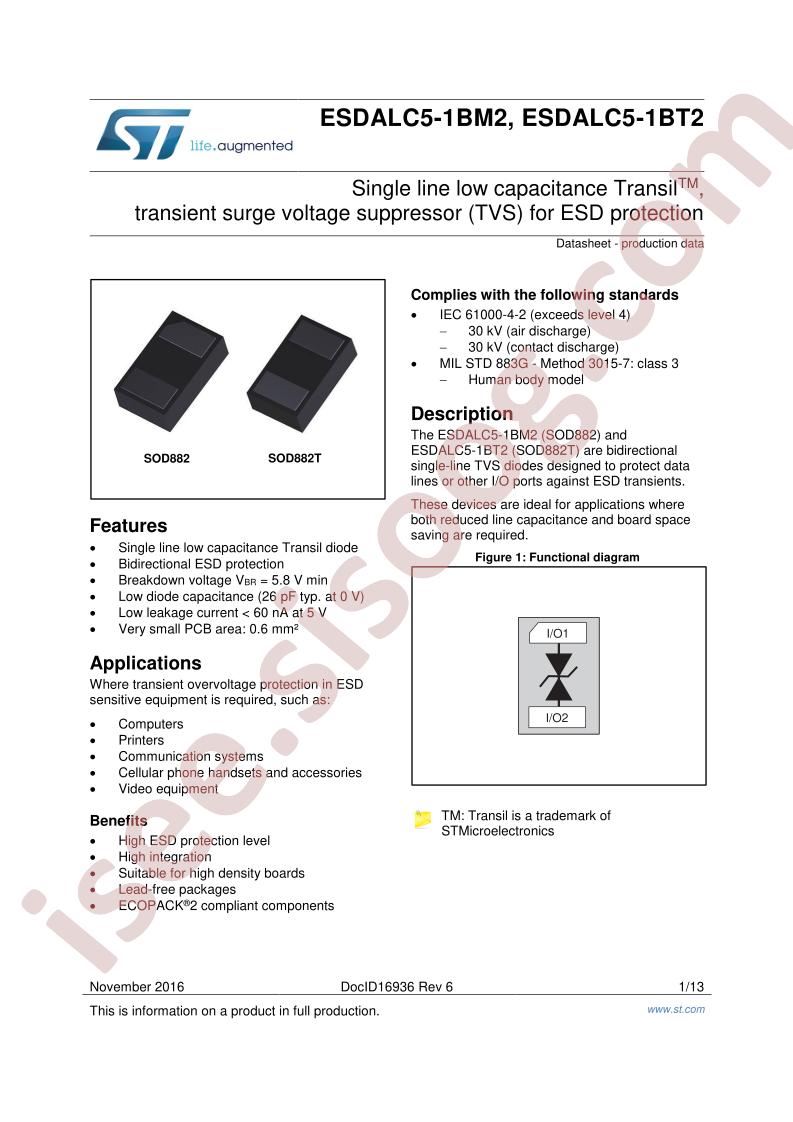

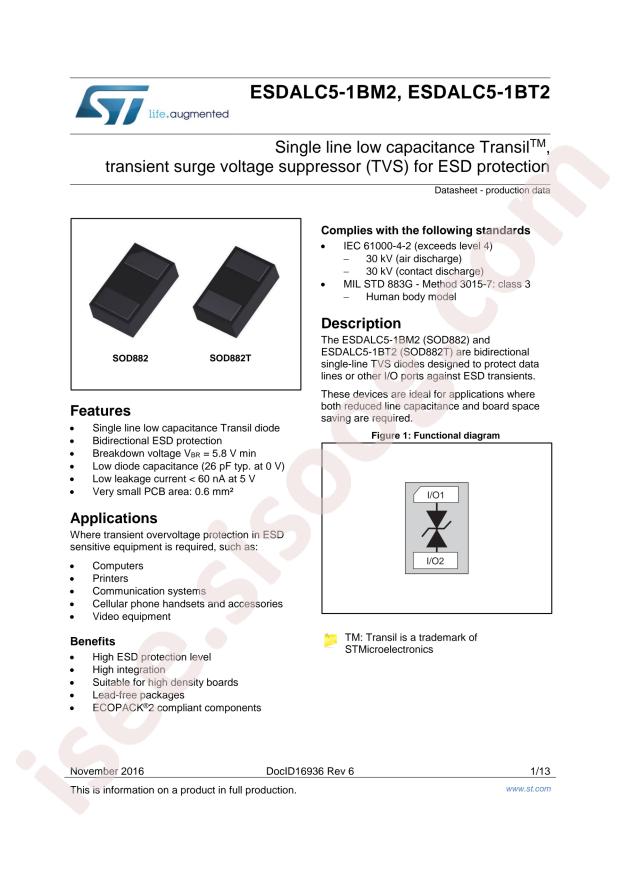

ESDALC5-1Bx2 Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics ESDALC5-1BM2
  • Clamping Voltage@Ipp: 5.8V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): 5.8V
  • Peak Pulse Power(Ppp)@8/20us: 150W
  • Junction Capacitance(Cj)@1MHz: 26pF@1MHz
  • Peak Pulse Current(Ipp)@8/20us: -
  • Reverse Stand-Off Voltage (Vrwm): 5V

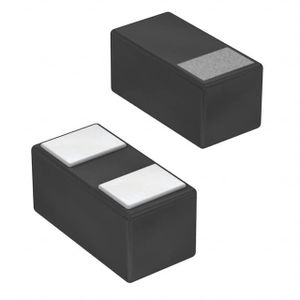

  • Package: SOD-882
  • Manufacturer: STMicroelectronics
  • Series: ESDA, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Bidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 5V
  • Voltage - Breakdown (Min): 5.8V
  • Voltage - Clamping (Max) @ Ipp: -
  • Current - Peak Pulse (10/1000µs): -
  • Power - Peak Pulse: 150W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 26pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SOD-882
  • Supplier Device Package: SOD-882
  • Base Part Number: ESDALC5
  • detail: Clamp Ipp Tvs Diode Surface Mount SOD-882
