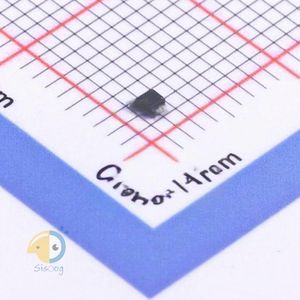

دیتاشیت TPS562231DRLR
مشخصات دیتاشیت
| نام دیتاشیت | TPS562231 Datasheet |
|---|---|
| حجم فایل | 1441.732 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 25 |

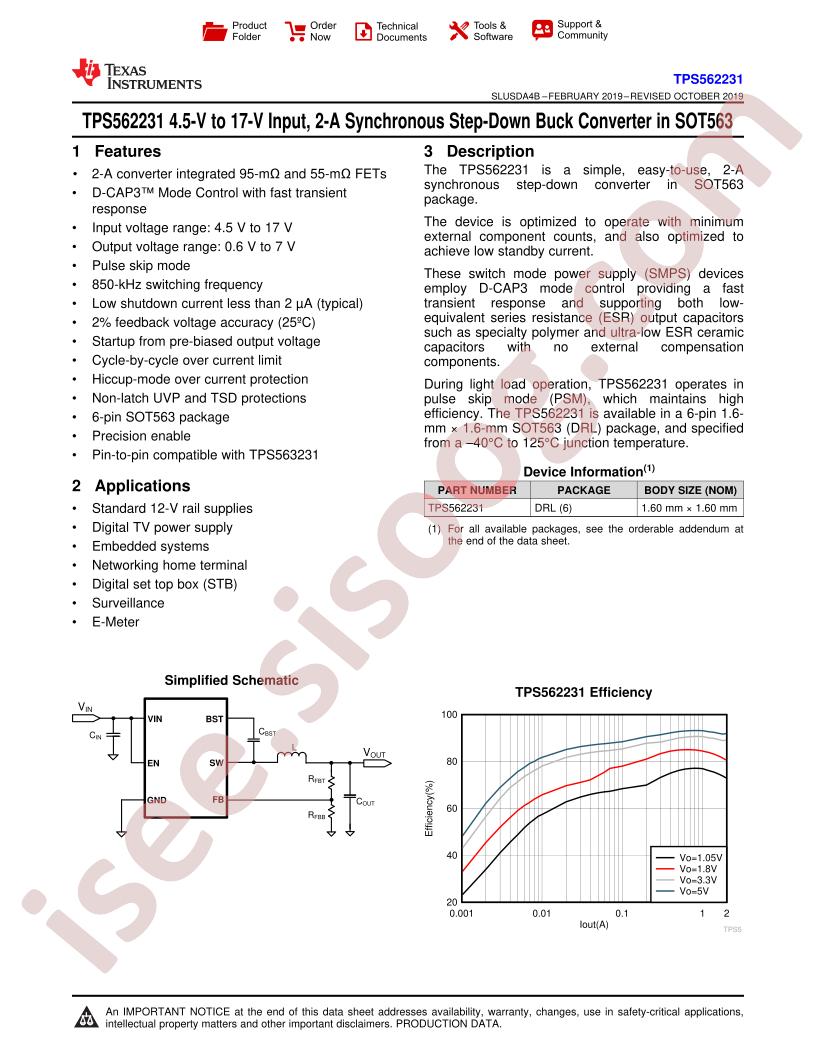

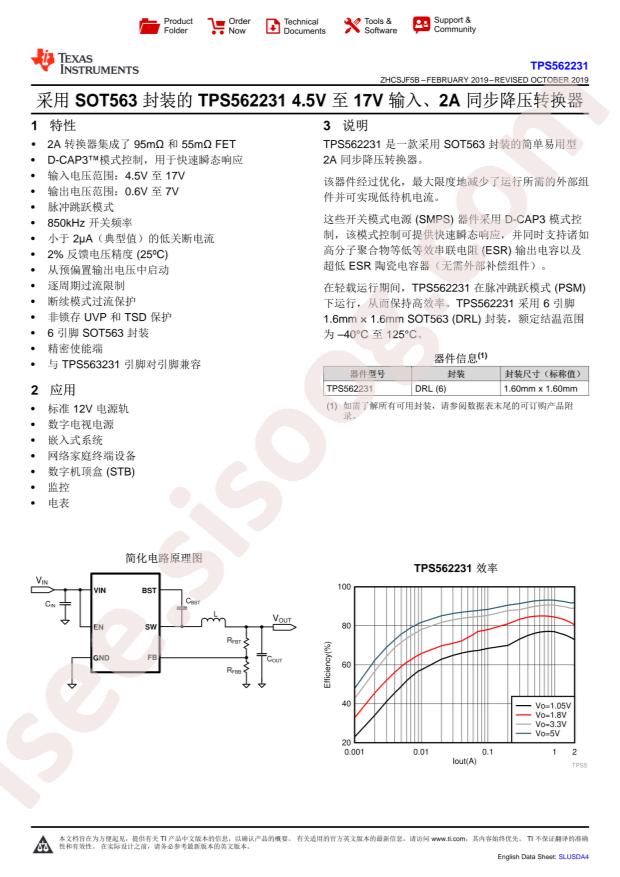

دانلود دیتاشیت TPS562231 Datasheet |
TPS562231 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments TPS562231DRLR
- Output Type: Adjustable
- Input Voltage: 4.5V~17V
- Output Voltage: 0.6V~7V
- Number of Outputs: 1
- Switching Frequency: 850kHz
- Output Current (Max): 2A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: Yes
- Package: SOT-563
- Manufacturer: Texas Instruments
- Current - Output: 2A
- Voltage - Input (Max): 17V
- Frequency - Switching: 850kHz
- Part Status: Active
- Base Part Number: TPS562
- Voltage - Output (Min/Fixed): 0.6V
- Package / Case: SOT-563, SOT-666
- Series: -
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: Yes
- Output Configuration: Positive
- Voltage - Output (Max): 7V
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-563
- Voltage - Input (Min): 4.5V
- detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A SOT-563, SOT-666
