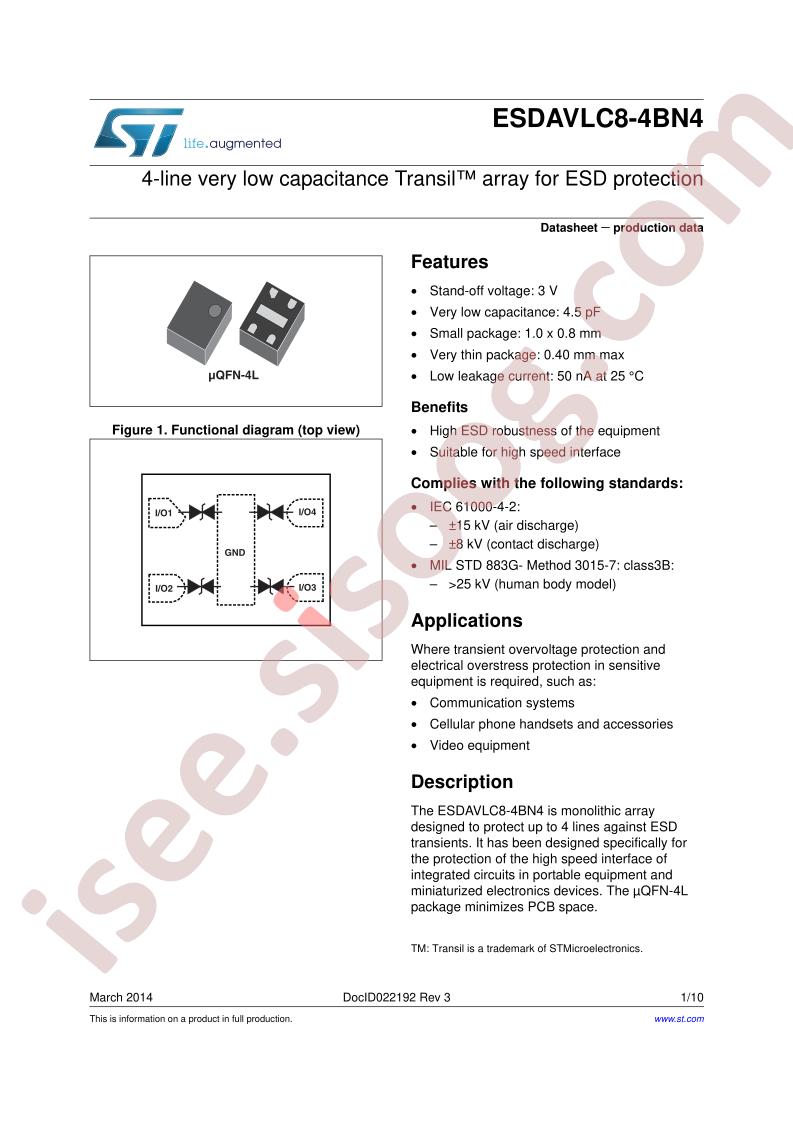

ESDAVLC8-4BN4 Datasheet
Datasheet specifications
| Datasheet's name | ESDAVLC8-4BN4 |
|---|---|
| File size | 355.094 KB |
| File type | |
| Number of pages | 10 |
Download Datasheet ESDAVLC8-4BN4 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: STMicroelectronics
- Series: ESDA, TRANSIL™
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Type: Zener
- Bidirectional Channels: 4
- Voltage - Reverse Standoff (Typ): 3V
- Voltage - Breakdown (Min): 8.5V
- Voltage - Clamping (Max) @ Ipp: 28V
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: 45W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 4.5pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 4-XFQFN Exposed Pad
- Supplier Device Package: 4-uQFN (1x0.8)
- Base Part Number: ESDAVLC8
- detail: 28V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 4-uQFN (1x0.8)
