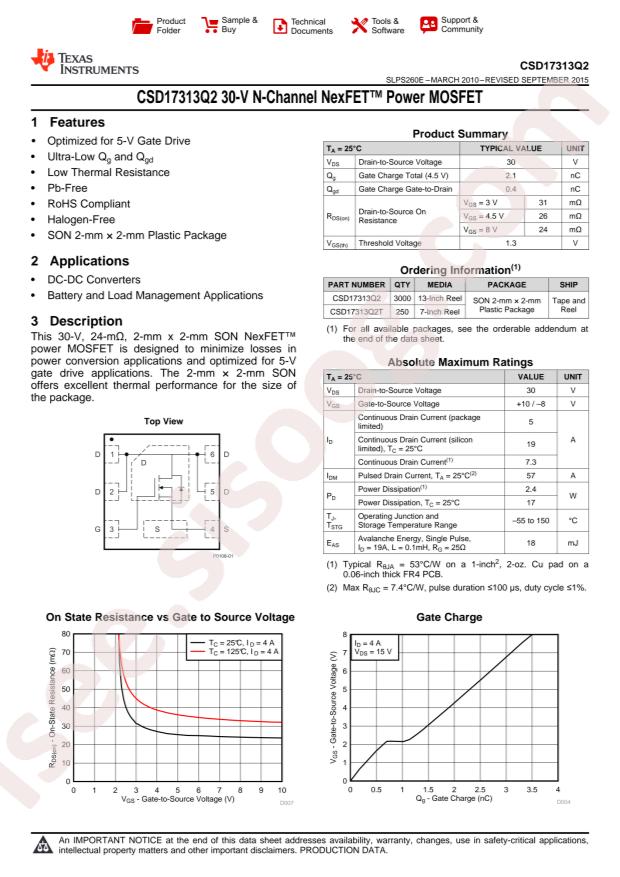

CSD17313Q2 دیتاشیت

CSD17313Q2

مشخصات دیتاشیت

نام دیتاشیت CSD17313Q2
حجم فایل 96.473 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

مشاهده دیتاشیت CSD17313Q2

دانلود دیتاشیت

سایر مستندات

Power Management Guide 93 pages

CSD17313Q2 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD17313Q2
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 2.3W
  • Total Gate Charge (Qg@Vgs): 2.7nC@4.5V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 340pF@15V
  • Continuous Drain Current (Id): 5A
  • Gate Threshold Voltage (Vgs(th)@Id): 1.8V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 30mΩ@4A,8V
  • Package: WSON-6
  • Manufacturer: Texas Instruments
  • Power Dissipation (Max): 2.3W (Ta)
  • Drain to Source Voltage (Vdss): 30V
  • Rds On (Max) @ Id, Vgs: 30mOhm @ 4A, 8V
  • Vgs (Max): +10V, -8V
  • FET Type: N-Channel
  • Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
  • Technology: MOSFET (Metal Oxide)
  • Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
  • FET Feature: -
  • Input Capacitance (Ciss) (Max) @ Vds: 340pF @ 15V
  • Packaging: Cut Tape (CT)
  • Package / Case: 6-WDFN Exposed Pad
  • Part Status: Active
  • Series: NexFET™
  • Vgs(th) (Max) @ Id: 1.8V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 2.7nC @ 4.5V
  • Supplier Device Package: 6-WSON (2x2)
  • Mounting Type: Surface Mount
  • Base Part Number: CSD173
  • detail: N-Channel 30V 5A (Tc) 2.3W (Ta) Surface Mount 6-WSON (2x2)
