دیتاشیت SN74LV123ARGYR

SN54LV123A, SN74LV123A

مشخصات دیتاشیت

نام دیتاشیت SN54LV123A, SN74LV123A
حجم فایل 1381.055 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت SN54LV123A, SN74LV123A

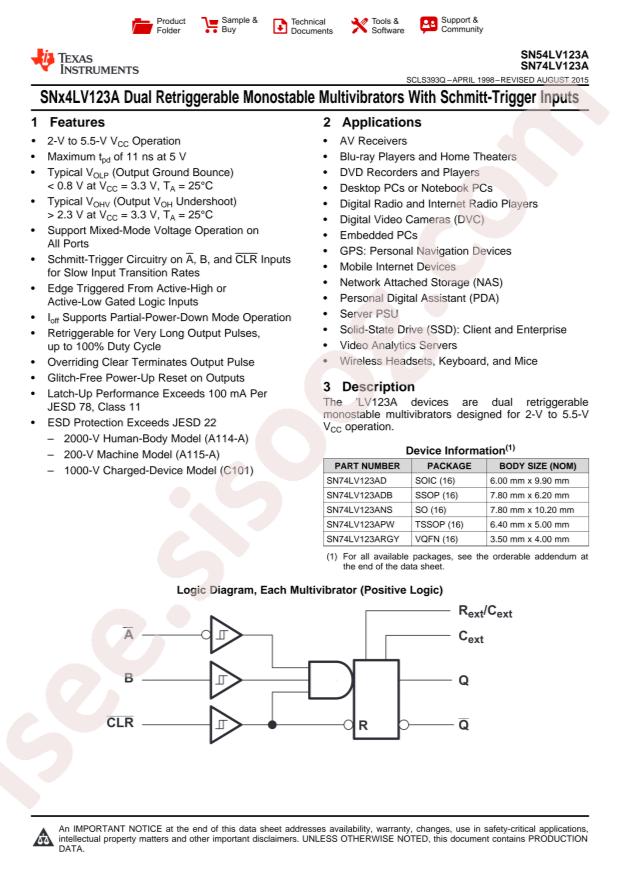

SN54LV123A, SN74LV123A Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Monostable Multivibrators
  • Datasheet: Texas Instruments SN74LV123ARGYR
  • Input Type: Schmitt Trigger
  • Logic Family: 74LV
  • Sink Current: 12mA
  • Source Current: 12mA
  • Supply Voltage: 2V~5.5V
  • Logic Gate Type: Monostable
  • Propagation Delay: 13ns
  • Number Of Channels: 2
  • OperatingTemperature: -40°C~+125°C
  • Package: QFN-16-EP(3.5x4)
  • Manufacturer: Texas Instruments
  • Independent Circuits: 2
  • Logic Type: Monostable
  • Part Status: Active
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Package / Case: 16-VFQFN Exposed Pad
  • Current - Output High, Low: 12mA, 12mA
  • Series: 74LV
  • Base Part Number: SN74LV12
  • Supplier Device Package: 16-VQFN (4x4)
  • Schmitt Trigger Input: Yes
  • Voltage - Supply: 2V ~ 5.5V
  • detail: Monostable Multivibrator 13ns 16-VQFN (4x4)
