دیتاشیت SN74HC540PWR

مشخصات دیتاشیت

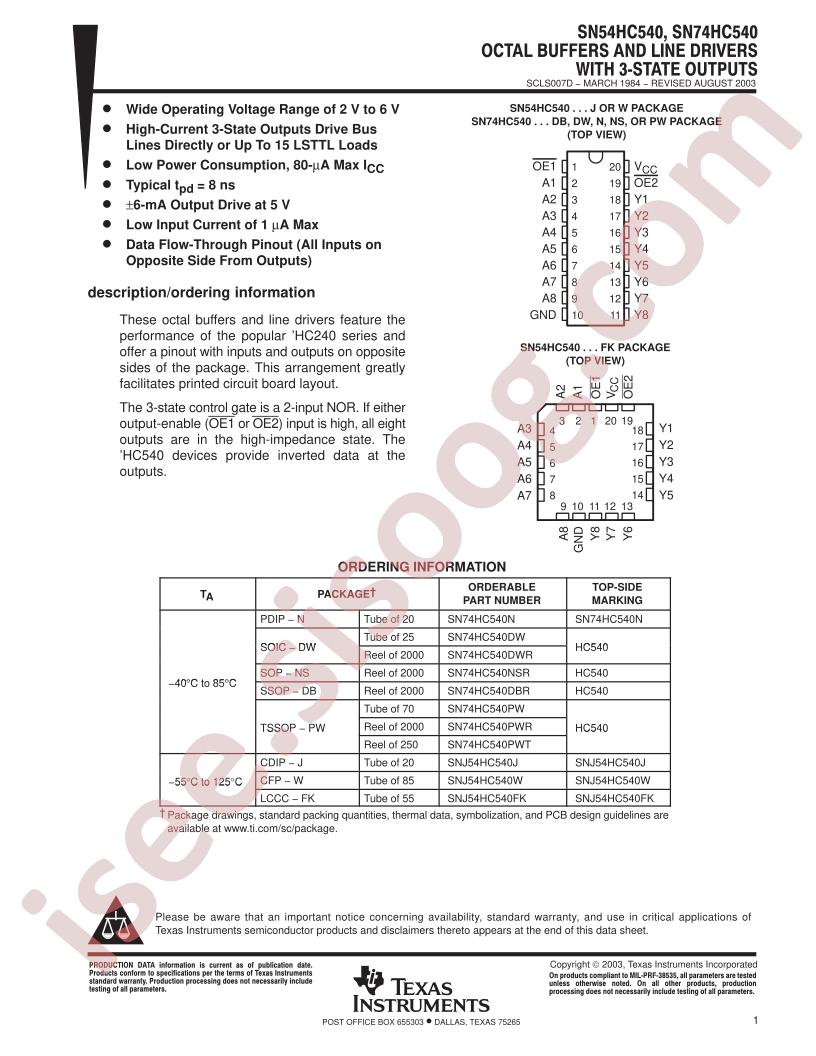

دانلود دیتاشیت SN54HC540, SN74HC540	SN54HC540, SN74HC540 Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74HC540PWR
Input type: -
output type: Tri-State
Logic Family: 74HC
Sink Current: 7.8mA
Source Current: 7.8mA
Supply Voltage: 2V~6V
Number of Elements: 1
Operating Temperature: -40°C~+85°C
Number of Bits per Element: 8
Package: TSSOP-20
Manufacturer: Texas Instruments
Voltage - Supply: 2V ~ 6V
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)
Package / Case: 20-TSSOP (0.173", 4.40mm Width)
Part Status: Active
Current - Output High, Low: 7.8mA, 7.8mA
Series: 74HC
Supplier Device Package: 20-TSSOP
Logic Type: Buffer, Inverting
Base Part Number: SN74HC5
detail: Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-TSSOP
