CD74HC4075PWR دیتاشیت

CD74HC4075PWR

مشخصات دیتاشیت

نام دیتاشیت CD74HC4075PWR
حجم فایل 52.793 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

دانلود دیتاشیت CD74HC4075PWR

دانلود دیتاشیت

سایر مستندات

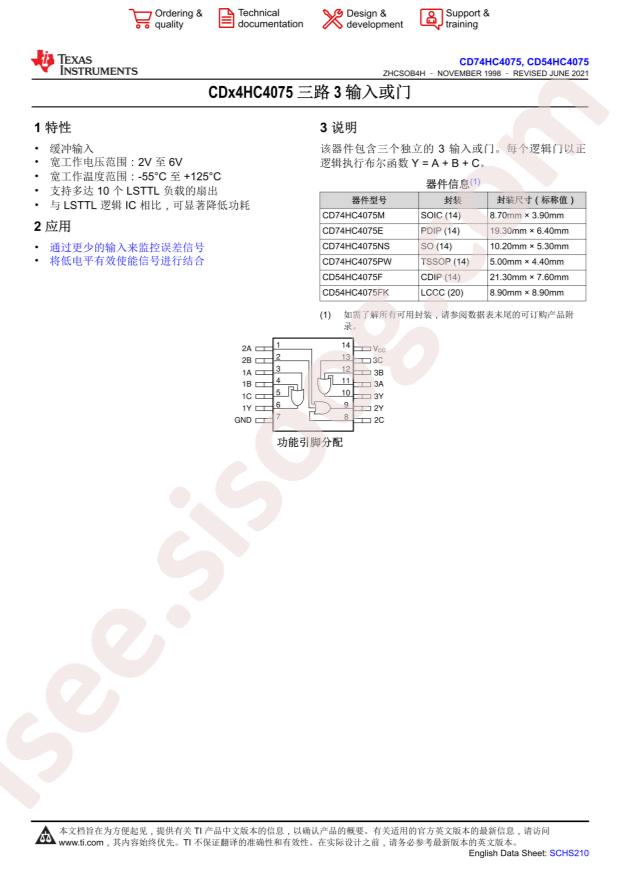

CD(54,74)HC(T)4075 Datasheet 22 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments CD74HC4075PWR
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Logic Gate Type: ORGate
  • Number of Channels: 3
  • Low Level Range (VIL): 0.5V~1.8V
  • Operating Temperature: -55°C~+125°C
  • High Level Range (VIH): 1.5V~4.2V
  • Propagation Delay Time: 17ns@6V,50pF
  • Quiescent Current (Max): 2uA
  • Package: TSSOP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.5V ~ 1.8V
  • Current - Quiescent (Max): 2µA
  • Voltage - Supply: 2V ~ 6V
  • Number of Circuits: 3
  • Packaging: Cut Tape (CT)
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Logic Level - High: 1.5V ~ 4.2V
  • Part Status: Active
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Features: -
  • Base Part Number: 74HC4075
  • Supplier Device Package: 14-TSSOP
  • Number of Inputs: 3
  • Logic Type: OR Gate
  • Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
  • detail: OR Gate IC 3 Channel 14-TSSOP
