- دیتاشیت SN74LV1T08DBVR

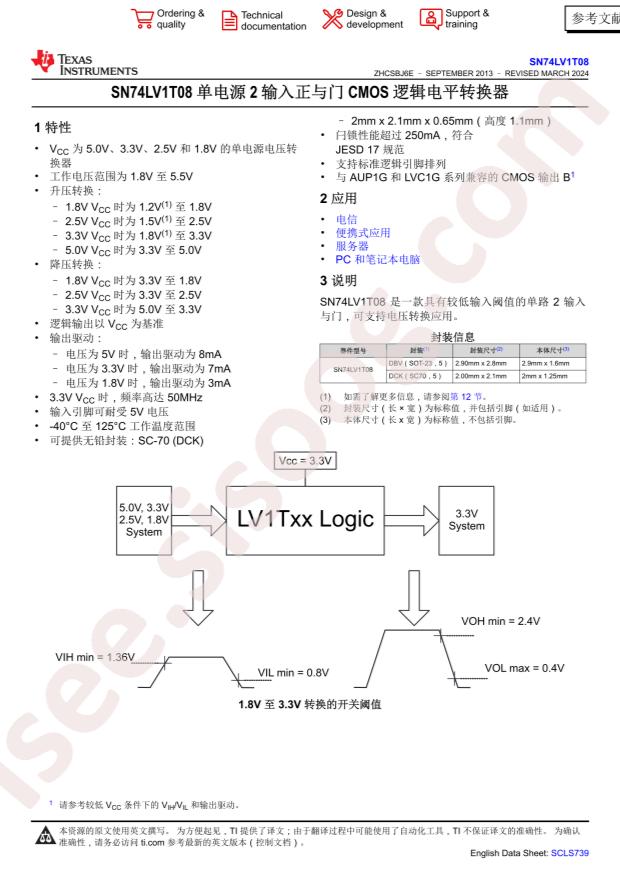

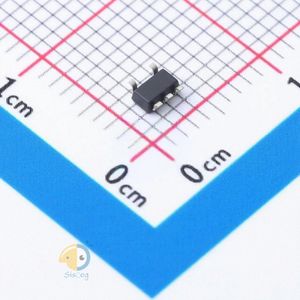

SN74LV1T08DBVR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LV1T08DBVR |
|---|---|
| حجم فایل | 73.596 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت SN74LV1T08DBVR |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
SN74LV1T08 19 pages
مشخصات فنی
- RoHS: true
- Series: 74LV
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LV1T08DBVR
- Sink Current: 8mA
- Source Current: 8mA
- Supply Voltage: 1.6V~5.5V
- Logic Gate Type: And
- Number of Channels: 1
- Low Level Range (VIL): 0.58V~0.8V
- Operating Temperature: -40°C~+125°C
- High Level Range (VIH): 0.94V~2.1V
- Propagation Delay Time: 7ns@5V,30pF
- Quiescent Current (Max): 10uA
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Logic Level - Low: 0.58V ~ 0.8V
- Current - Quiescent (Max): 10µA
- Voltage - Supply: 1.6V ~ 5.5V
- Number of Circuits: 1
- Packaging: Cut Tape (CT)
- Package / Case: SC-74A, SOT-753
- Logic Level - High: 0.94V ~ 2.1V
- Part Status: Active
- Current - Output High, Low: 8mA, 8mA
- Features: -
- Base Part Number: SN74LV1T
- Supplier Device Package: SOT-23-5
- Number of Inputs: 2
- Logic Type: AND Gate
- Max Propagation Delay @ V, Max CL: 7ns @ 5V, 30pF

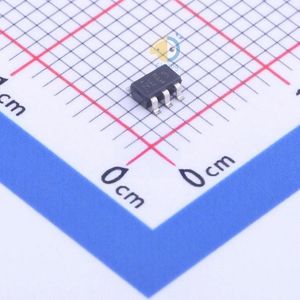

- detail: AND Gate IC 1 Channel SOT-23-5
