- دیتاشیت SN74AUP1G08DRLR
SN74AUP1G08DRLR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74AUP1G08DRLR |
|---|---|
| حجم فایل | 100.801 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 45 |

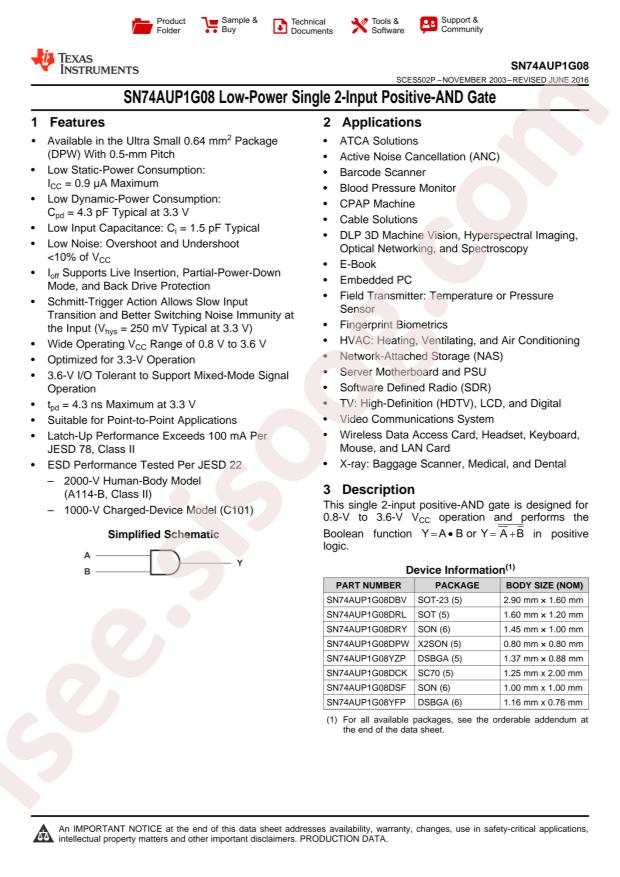

دانلود دیتاشیت SN74AUP1G08DRLR |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
SN74AUP1G08 46 pages
مشخصات فنی
- RoHS: true
- Series: 74AUP
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74AUP1G08DRLR
- Sink Current: 4mA
- Source Current: 4mA
- Supply Voltage: 0.8V~3.6V
- Logic Gate Type: And
- Number of Channels: 1
- Low Level Range (VIL): 0.7V~0.9V
- Operating Temperature: -40°C~+85°C
- High Level Range (VIH): 1.6V~2V
- Propagation Delay Time: 6.2ns@3.3V,30pF
- Quiescent Current (Max): 500nA
- Package: SOT-553
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Logic Level - Low: 0.7V ~ 0.9V
- Current - Quiescent (Max): 500nA
- Voltage - Supply: 0.8V ~ 3.6V
- Number of Circuits: 1
- Packaging: Cut Tape (CT)
- Package / Case: SOT-553
- Logic Level - High: 1.6V ~ 2V
- Part Status: Active
- Current - Output High, Low: 4mA, 4mA
- Features: -
- Base Part Number: SN74AUP
- Supplier Device Package: SOT-5
- Number of Inputs: 2
- Logic Type: AND Gate
- Max Propagation Delay @ V, Max CL: 6.2ns @ 3.3V, 30pF
- detail: AND Gate IC 1 Channel SOT-5
