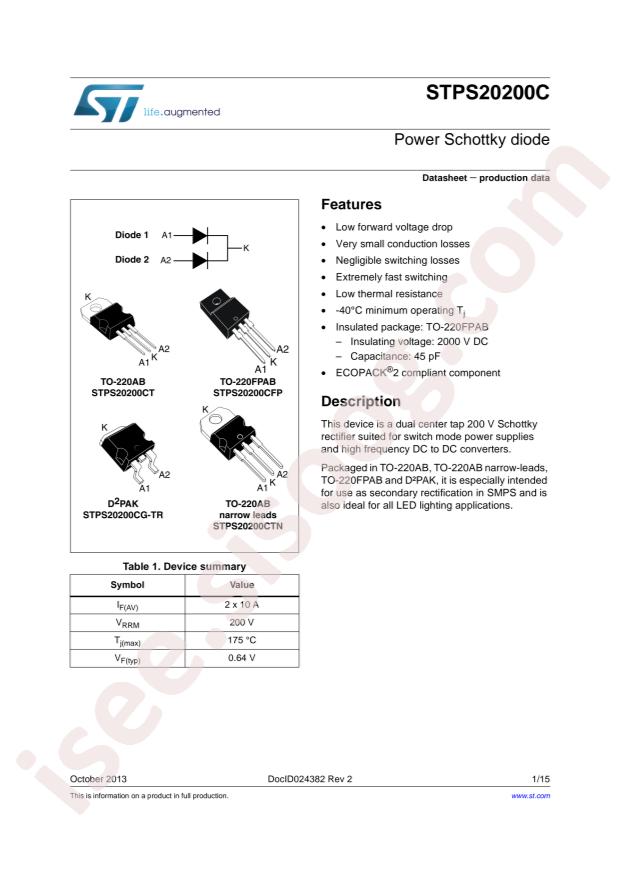

STPS20200CFP دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STPS20200CFP
|
|
حجم فایل
|
55.366
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
STMicroelectronics STPS20200CFP
-
Reverse Voltage (Vr):
200V
-
Forward Voltage (Vf@If):
860mV@10A
-
Average Rectified Current (Io):
10A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Configuration:
1 Pair Common Cathode
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
200V
-
Current - Average Rectified (Io) (per Diode):
10A
-
Voltage - Forward (Vf) (Max) @ If:
860mV @ 10A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
15µA @ 200V
-
Operating Temperature - Junction:
-40°C ~ 175°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220FPAB
-
Base Part Number:
STPS20200
-
detail:
Diode Array 1 Pair Common Cathode Schottky 200V 10A Through Hole TO-220-3 Full Pack
