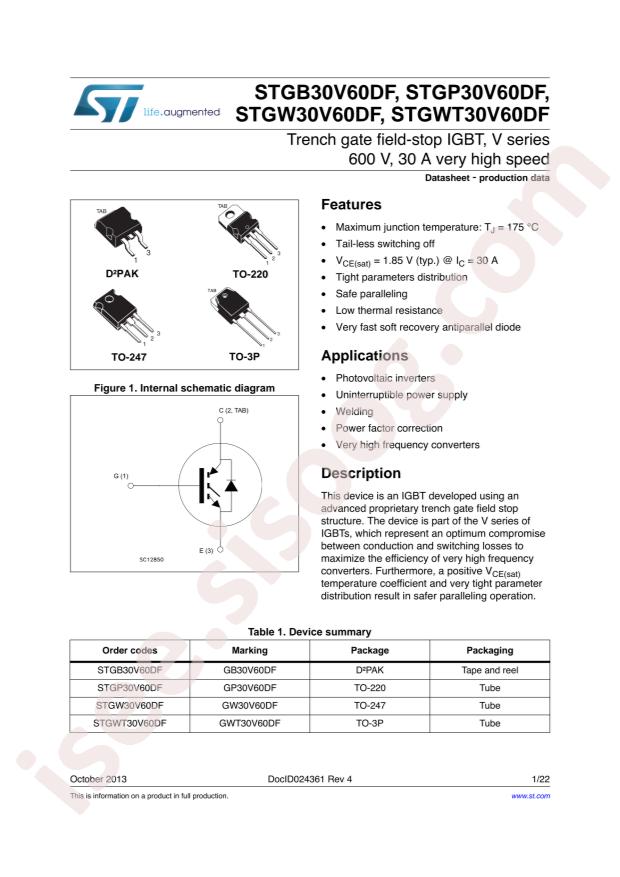

STGW30V60DF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGW30V60DF
|
|
حجم فایل
|
71.784
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
22
|
مشخصات فنی
-
RoHS:
true
-
Type:
Trench Field Stop
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
STMicroelectronics STGW30V60DF
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Collector Current (Ic):
60A
-
Power Dissipation (Pd):
258W
-
Turn?on Delay Time (Td(on)):
45ns
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
0.383mJ
-
Total Gate Charge (Qg@Ic,Vge):
163nC
-
Turn?off Delay Time (Td(off)):
189ns
-
Pulsed Collector Current (Icm):
120A
-
Turn?off Switching Loss (Eoff):
0.233mJ
-
Diode Reverse Recovery Time (Trr):
53ns
-
Collector-Emitter Breakdown Voltage (Vces):
600V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.3V@15V,30A
-
Package:
TO-247
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
60A
-
Current - Collector Pulsed (Icm):
120A
-
Vce(on) (Max) @ Vge, Ic:
2.3V @ 15V, 30A
-
Power - Max:
258W
-
Switching Energy:
383µJ (on), 233µJ (off)
-
Input Type:
Standard
-
Gate Charge:
163nC
-
Td (on/off) @ 25°C:
45ns/189ns
-
Test Condition:
400V, 30A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
53ns
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247
-
Base Part Number:
STGW30
-
detail:
IGBT Trench Field Stop 600V 60A 258W Through Hole TO-247
