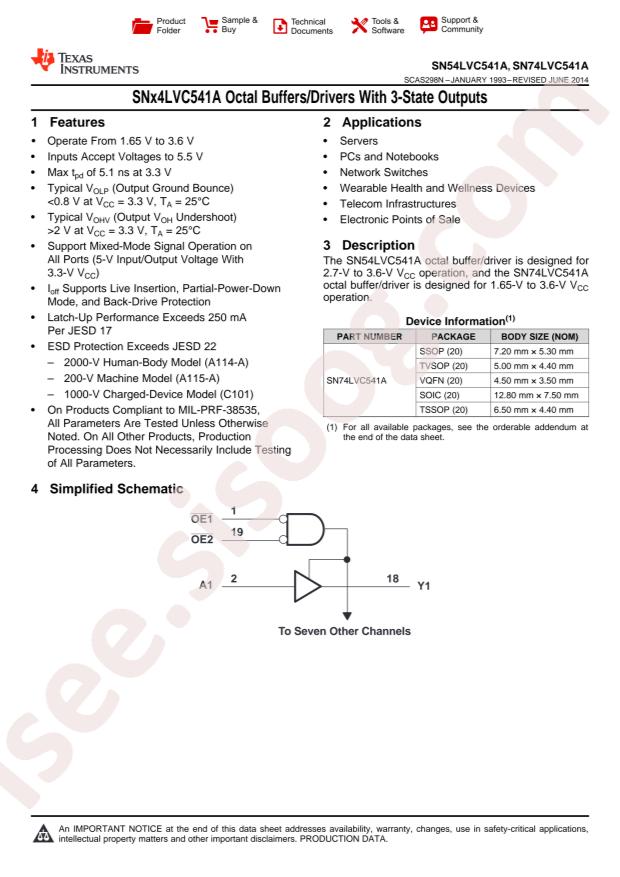

- دیتاشیت SN74LVC541ADGVR
دیتاشیت SN74LVC541ADGVR
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC541ADGVR |
|---|---|
| حجم فایل | 78.152 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 38 |
SN74LVC541ADGVR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54LVC541A, SN74LVC541A 36 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LVC541ADGVR
- Input type: -
- output type: Tri-State
- Sink Current: 24mA
- Source Current: 24mA
- Supply Voltage: 1.65V~3.6V
- Operating Temperature: -40°C~+125°C
- Package: TVSOP-20-4.4mm
- Manufacturer: Texas Instruments
- Number of Elements: 1
- Voltage - Supply: 1.65V ~ 3.6V
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Package / Case: 20-TFSOP (0.173", 4.40mm Width)
- Number of Bits per Element: 8
- Part Status: Active
- Current - Output High, Low: 24mA, 24mA
- Series: 74LVC
- Supplier Device Package: 20-TVSOP
- Logic Type: Buffer, Non-Inverting
- Base Part Number: SN74LVC54
- detail: Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-TVSOP
