دیتاشیت TPS22913BYZVR
مشخصات دیتاشیت
| نام دیتاشیت | TPS22910A, 12C, 13B, 13C |
|---|---|
| حجم فایل | 1538.712 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 37 |
دانلود دیتاشیت TPS22910A, 12C, 13B, 13C |

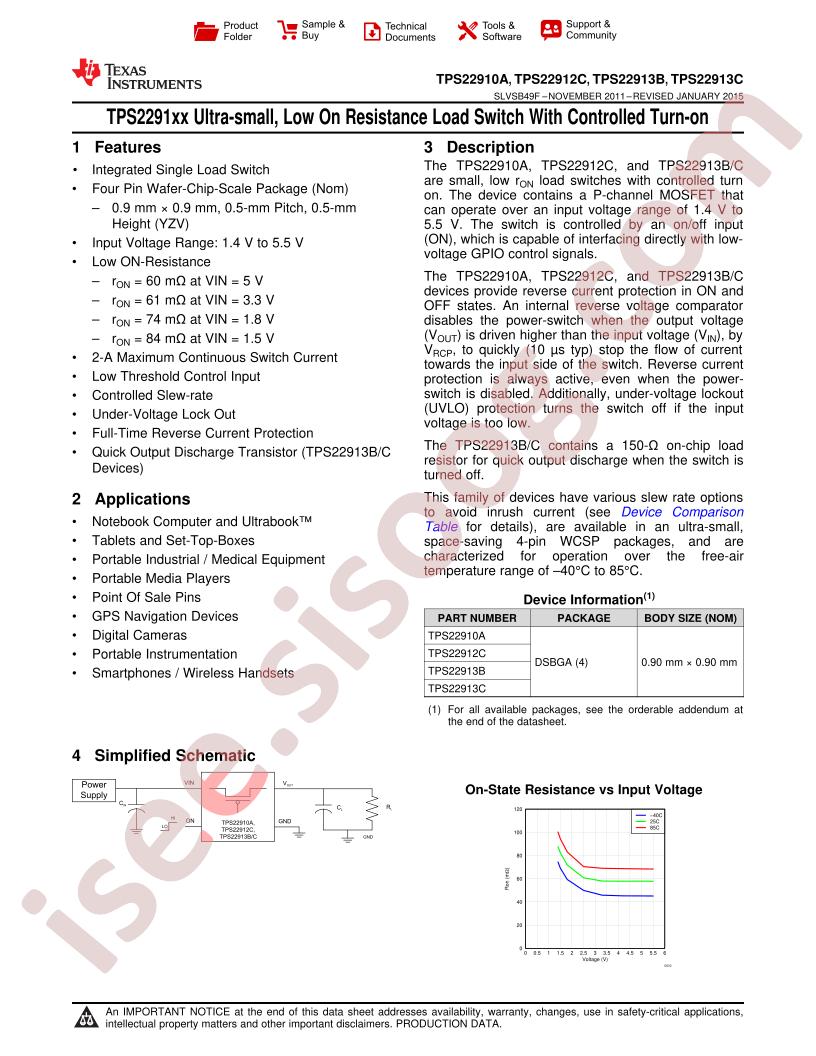

TPS22910A, 12C, 13B, 13C Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: Texas Instruments TPS22913BYZVR
- Input Voltage: 1.4V~5.5V
- Output Current: 2A
- Number of Outputs: 1
- Resistor On-State: 60mΩ
- Operating Temperature -: -40°C~+85°C
- Package: BGA-4
- Manufacturer: Texas Instruments
- Input Type: Non-Inverting
- Output Configuration: High Side
- Operating Temperature: -40°C ~ 85°C (TA)
- Packaging: Cut Tape (CT)
- Ratio - Input:Output: 1:1
- Switch Type: General Purpose
- Part Status: Active
- Supplier Device Package: 4-DSBGA (0.88x0.88)
- Mounting Type: Surface Mount
- Fault Protection: Reverse Current, UVLO
- Rds On (Typ): 60mOhm
- Current - Output (Max): 2A
- Package / Case: 4-XFBGA, DSBGA
- Series: -
- Interface: On/Off
- Base Part Number: TPS229
- Features: Load Discharge, Slew Rate Controlled
- Output Type: P-Channel
- Voltage - Supply (Vcc/Vdd): Not Required
- Voltage - Load: 1.4V ~ 5.5V
- detail: Power Switch/Driver 1:1 P-Channel 2A 4-DSBGA (0.88x0.88)
