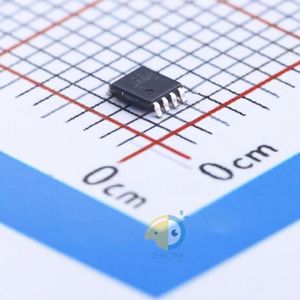

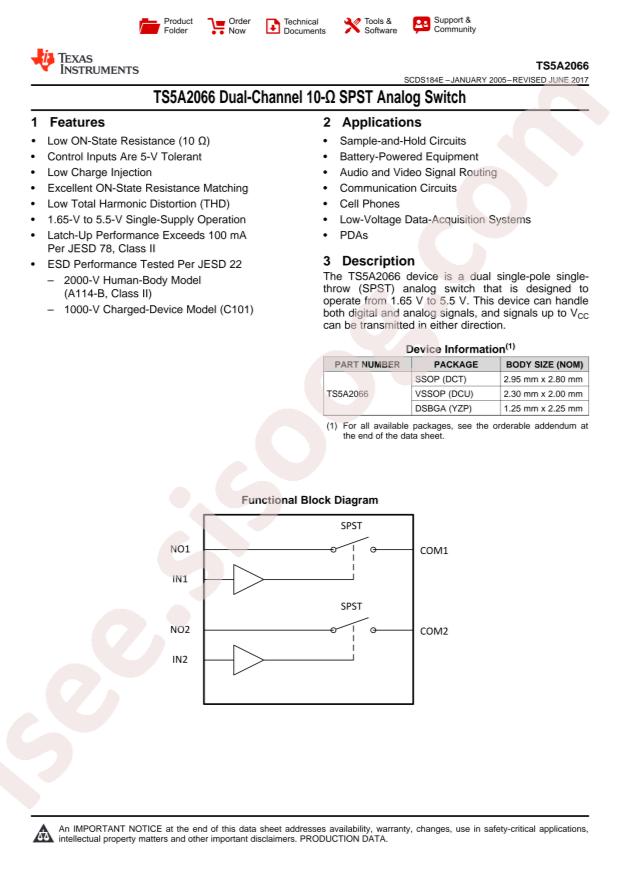

TS5A2066DCUR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TS5A2066DCUR
|
|
حجم فایل
|
67.683
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
37
|
مشخصات فنی
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Texas Instruments TS5A2066DCUR
-
Switch Circuit:
-
-
Package:
VSSOP-8
-
Manufacturer:
Texas Instruments
-
Current - Leakage (IS(off)) (Max):
30nA
-
Voltage - Supply, Single (V+):
1.65V ~ 5.5V
-
Voltage - Supply, Dual (V±):
-
-
Number of Circuits:
2
-
Channel-to-Channel Matching (ΔRon):
1Ohm
-
Package / Case:
8-VFSOP (0.091", 2.30mm Width)
-
Part Status:
Active
-
Supplier Device Package:
8-VSSOP
-
Switch Time (Ton, Toff) (Max):
5.8ns, 3.6ns
-
Packaging:
Cut Tape (CT)
-
-3db Bandwidth:
300MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Crosstalk:
-68dB @ 10MHz
-
Base Part Number:
TS5A206
-
Series:
-
-
Channel Capacitance (CS(off), CD(off)):
5.5pF, 5.5pF
-
On-State Resistance (Max):
10Ohm
-
Multiplexer/Demultiplexer Circuit:
1:1
-
Charge Injection:
1pC
-
detail:
2 Circuit IC Switch 1:1 10Ohm 8-VSSOP
