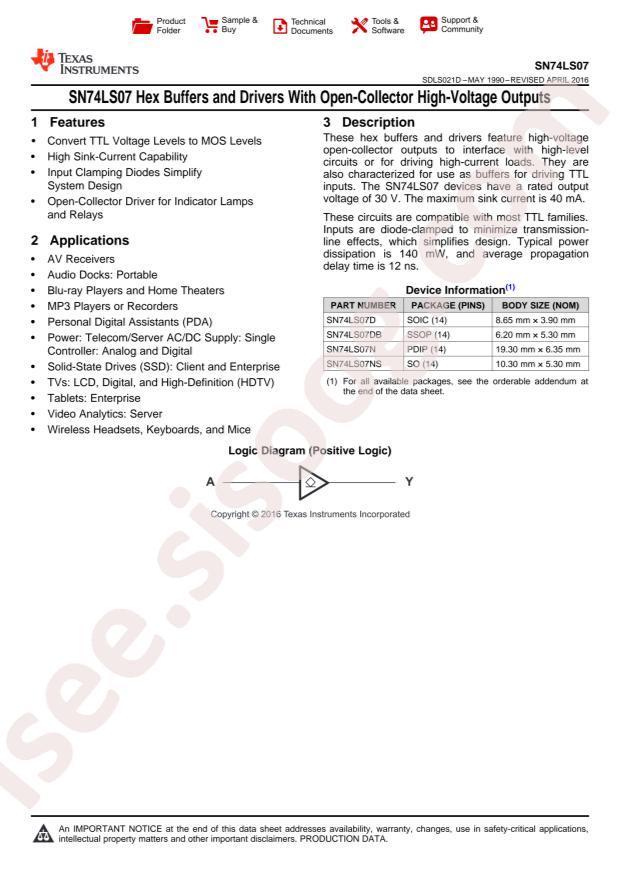

دیتاشیت SN74LS07DR
مشخصات دیتاشیت
| نام دیتاشیت | SN74LS07DR |
|---|---|
| حجم فایل | 77.33 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
SN74LS07DR |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
SN54LS07, SN74LS07, SN74LS17 21 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LS07DR
- Input type: -
- output type: Open Collector
- Logic Family: 74LS
- Sink Current: 40mA
- Source Current: -
- Supply Voltage: 4.75V~5.25V
- Number of Elements: 6
- Operating Temperature: 0°C~+70°C
- Number of Bits per Element: 1
- Package: SOP-14
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.75V ~ 5.25V
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Current - Output High, Low: -, 40mA
- Series: 74LS
- Supplier Device Package: 14-SOIC
- Logic Type: Buffer, Non-Inverting
- Base Part Number: SN74LS07
- detail: Buffer, Non-Inverting 6 Element 1 Bit per Element Open Collector Output 14-SOIC
