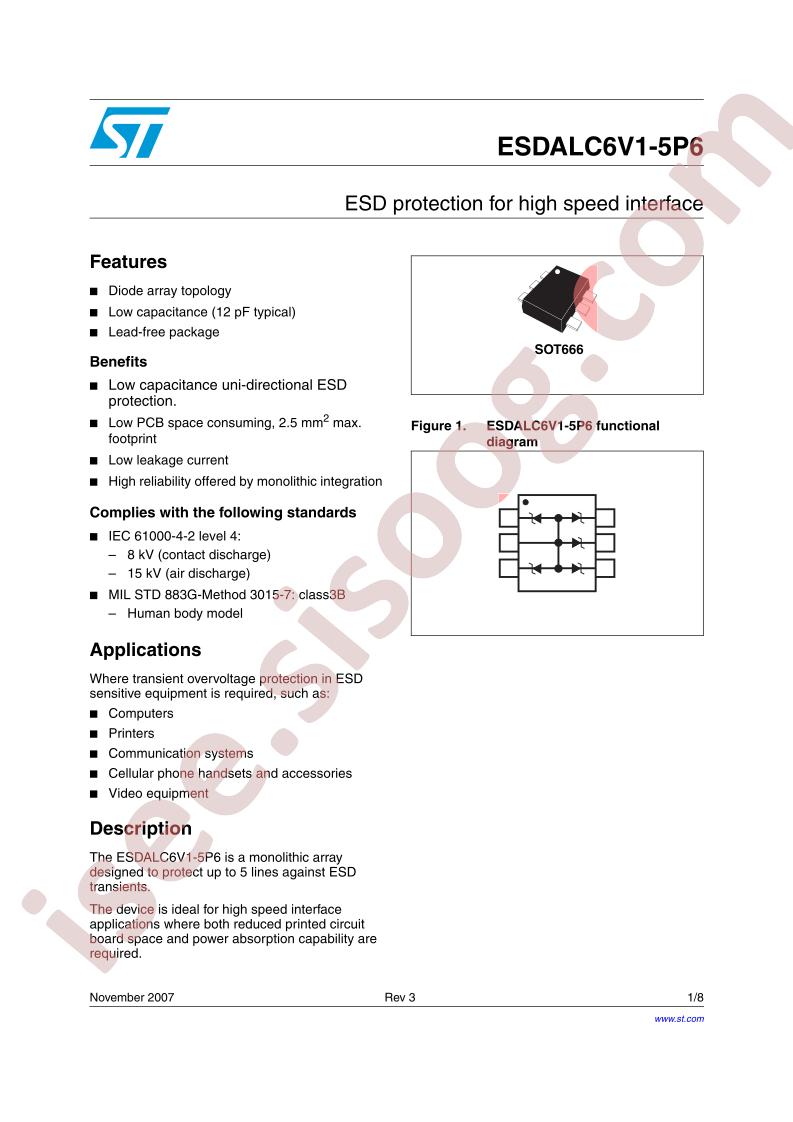

ESDALC6V1-5P6 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: STMicroelectronics
- Series: ESDA, TRANSIL™
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Unidirectional Channels: 5
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6.1V
- Voltage - Clamping (Max) @ Ipp: 14V
- Current - Peak Pulse (10/1000µs): 2.5A (8/20µs)
- Power - Peak Pulse: 30W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 12pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-666
- Base Part Number: ESDALC6V1
- detail: 14V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-666
