LM4041DEM3-ADJ/NOPB 数据手册
其他文档

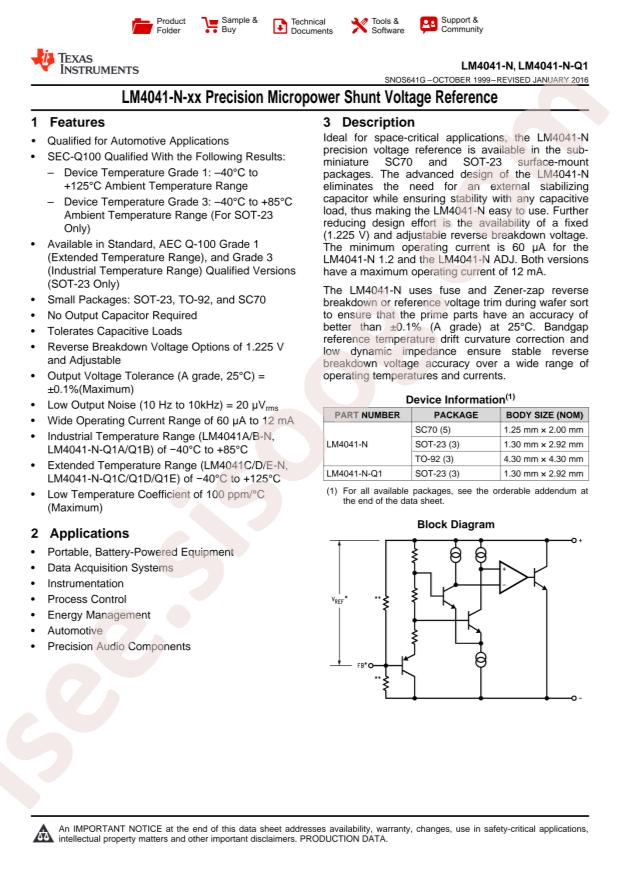

LM4041-N, LM4041-N-Q1 Datasheet 49 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Texas Instruments LM4041DEM3-ADJ/NOPB
- Tolerance: ±1%
- Output Type: Adjustable
- Input Voltage: -
- Output Current: 12mA
- Output Voltage: 1.233V~10V
- Reference Type: parallel connection
- Supply Current: -
- Noise - 10Hz to 10kHz: 20uVrms
- Operating Temperature: -40°C~+125°C@(Ta)
- Noise - 1/10Hz to 10Hz: -
- Temperature Coefficient: 150ppm/°C
- Minimum Cathode Current for Regulation: 73uA
- Package: SOT-23
- Manufacturer: Texas Instruments
- Current - Supply: -
- Mounting Type: Surface Mount
- Current - Output: 12mA
- Series: -
- Base Part Number: LM4041
- Supplier Device Package: SOT-23-3
- Current - Cathode: 73µA
- Voltage - Output (Min/Fixed): 1.233V
- Voltage - Output (Max): 10V
- Voltage - Input: -
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Packaging: Cut Tape (CT)
- Part Status: Not For New Designs
- Noise - 0.1Hz to 10Hz: -
- detail: Shunt Voltage Reference IC 10V ±1% SOT-23-3
