STTH3R06UFY دیتاشیت

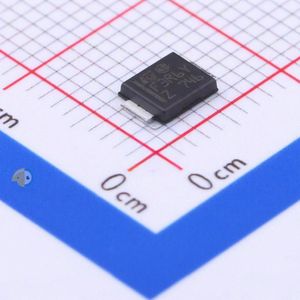

STTH3R06UFY

مشخصات دیتاشیت

نام دیتاشیت STTH3R06UFY
حجم فایل 47.228 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

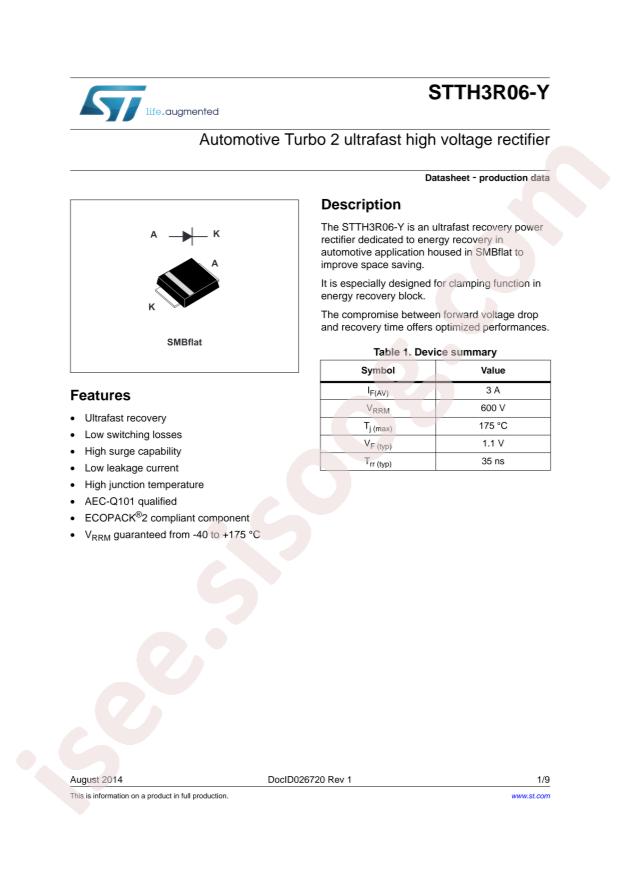

مشاهده دیتاشیت STTH3R06UFY

دانلود دیتاشیت

سایر مستندات

STTH3R06UFY 9 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Diodes - Fast Recovery Rectifiers
  • Datasheet: STMicroelectronics STTH3R06UFY
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 600V
  • Operating Temperature: -40°C~+175°C@(Tj)
  • Forward Voltage (Vf@If): 1.9V@3A
  • Reverse Leakage Current: 3uA@600V
  • Reverse Recovery Time (trr): 35ns
  • Average Rectified Current (Io): 3A
  • Package: SMBflat
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101, ECOPACK®2
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 1.9V @ 3A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 3µA @ 600V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: DO-221AA, SMB Flat Leads
  • Supplier Device Package: SMBflat
  • Operating Temperature - Junction: -40°C ~ 175°C
  • Base Part Number: STTH3R
  • detail: Diode Standard 600V 3A Surface Mount SMBflat
