دیتاشیت SMM4F10A-TR

SMM4F

مشخصات دیتاشیت

نام دیتاشیت SMM4F
حجم فایل 491.265 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

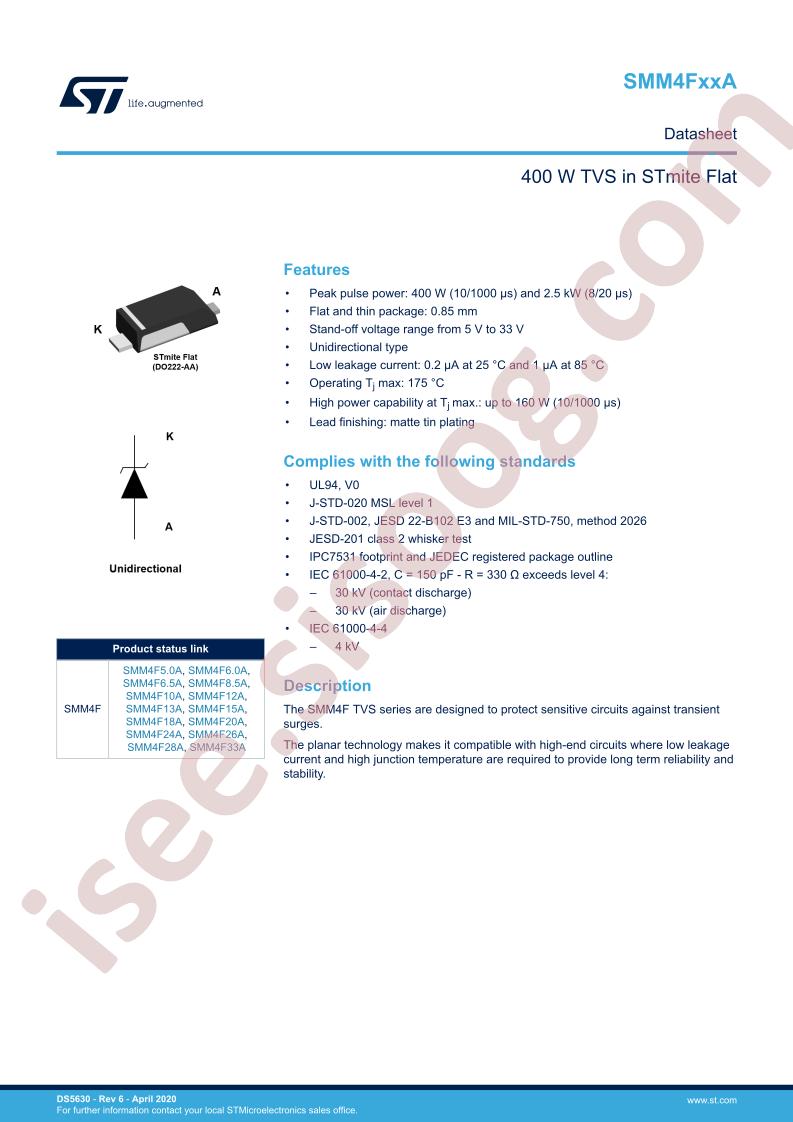

دانلود دیتاشیت SMM4F

SMM4F Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: STMicroelectronics SMM4F10A-TR
  • Breakdown Voltage: 11.4V
  • Maximum Clamping Voltage: 21.7V
  • Reverse Leakage Current (Ir): 0.2uA
  • Reverse Stand-Off Voltage (Vrwm): 10V
  • Peak Pulse Current (Ipp)@10/1000us: 106A@8/20us
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 400W
  • Package: DO-222AA
  • Manufacturer: STMicroelectronics
  • Series: SMM4F, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 10V
  • Voltage - Breakdown (Min): 11.4V
  • Voltage - Clamping (Max) @ Ipp: 21.7V
  • Current - Peak Pulse (10/1000µs): 106A (8/20µs)
  • Power - Peak Pulse: 400W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: DO-222AA
  • Supplier Device Package: DO222-AA
  • Base Part Number: SMM4F
  • detail: 21.7V Clamp 106A (8/20µs) Ipp Tvs Diode Surface Mount DO222-AA
